(27.120.AF[03]) - SIDE REDUCTION UNITS GEARING - HEAVY DUTY

Запчасти Case IH FARMALL 110A (27.120.AF[03]) - SIDE REDUCTION UNITS GEARING - HEAVY DUTY (27) - REAR AXLE SYSTEM

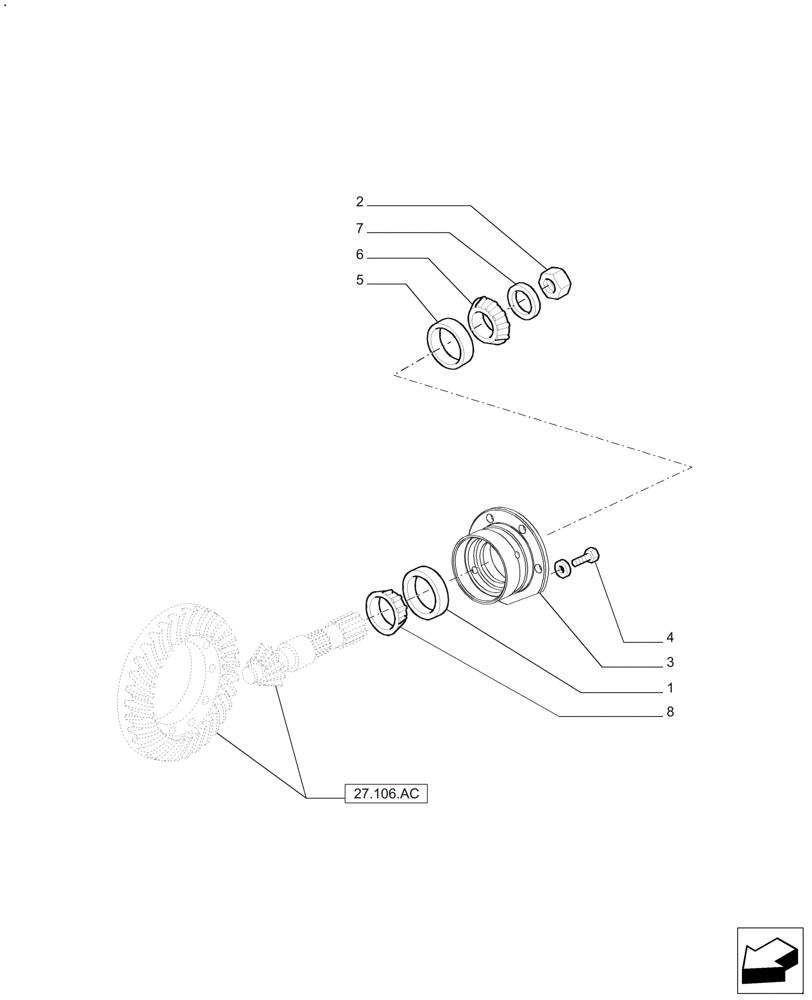

Схема запчастей Case IH FARMALL 110A - (27.120.AF[03]) - SIDE REDUCTION UNITS GEARING - HEAVY DUTY (27) - REAR AXLE SYSTEM
7
1
6
3
2
8
27.106.ac
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

83991728

BEARING ASSY

1шт.

2

83963557

BEARING LOCK NUT,1 5/8"-20

1шт.

3

73336839

STEERING COLUMN

Retainer Pinion

1шт.

4

81821254

BOLT,Hex, 9/16" - 12 x 1 1/4", Gr 5

4шт.

5

81812385

BEARING ASSY,88.92mm OD x 23.07mm W

1шт.

6

82936268

TAPERED BEARING,44.45mm ID x 30.38mm W

1шт.

7

81815991

THRUST WASHER,38.73mm ID x 57.15mm OD x 3.17mm Thk

1шт.

8

83992835

BEARING ASSY

1шт.
