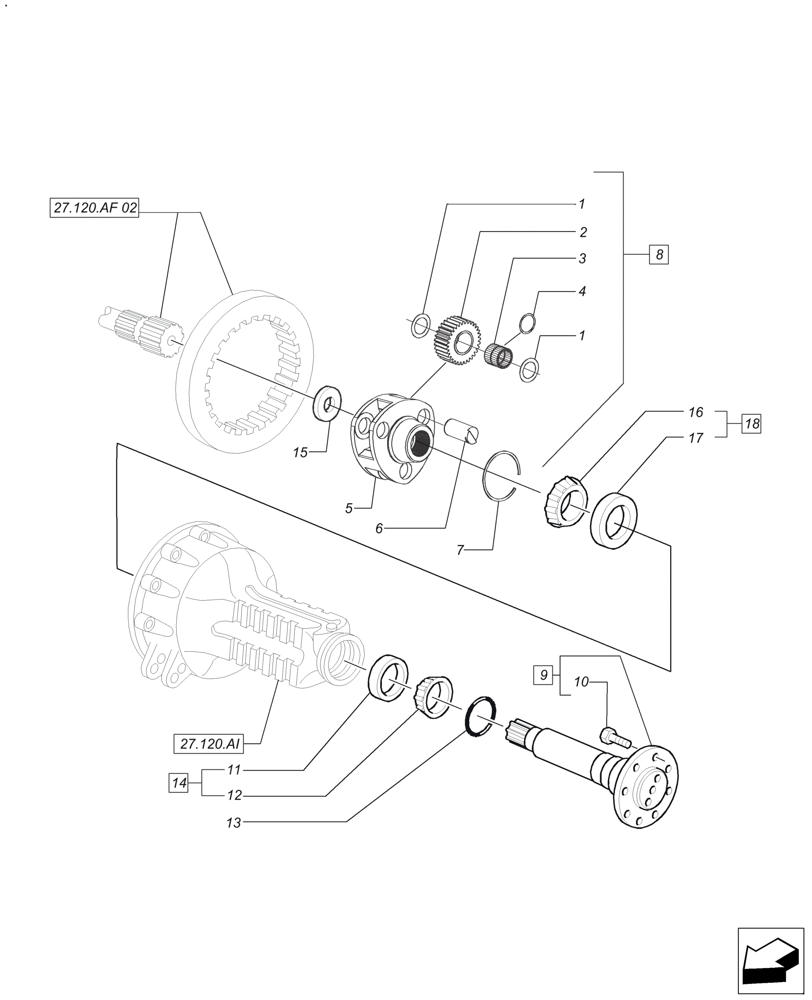

Запчасти Case IH FARMALL 110A (27.120.AF[01]) - SIDE GEAR REDUCTION UNIT (27) - REAR AXLE SYSTEM

1

81803272

THRUST WASHER,45.92mm ID x 67.69mm OD x 0.81mm Thk

STD

12шт.

1

81803272

THRUST WASHER,45.92mm ID x 67.69mm OD x 0.81mm Thk

Heavy Duty

16шт.

2

81866264

GEAR,31 T

STD

6шт.

2

81866264

GEAR,31 T

Heavy Duty

8шт.

3

81823554

NEEDLE ROLLER,Needle, 5.55mm OD x 25.4mm L

Bearing - STD

348шт.

3

81823554

NEEDLE ROLLER,Needle, 5.55mm OD x 25.4mm L

Bearing - Heavy Duty

464шт.

4

81803274

SHIM,47.5mm ID x 56.87mm OD x 1.19mm Thk

STD

6шт.

4

81803274

SHIM,47.5mm ID x 56.87mm OD x 1.19mm Thk

Heavy Duty

8шт.

5

82936255

PINION CARRIER

Assy - STD

2шт.

Applied for the Flange Axle VAR 390331

1шт.

5

82936254

CARRIER

CARRIER Assy - Heavy Duty, not shown

2шт.

Applied for the Bar Axle VAR 330331

1шт.

6

81823521

SHAFT

STD

6шт.

6

81823521

SHAFT

Heavy Duty

8шт.

7

83997592

RETAINER,126mm ID

126mm ID

2шт.

8

81866257

CARRIER

STD, Incl 1 - 7

2шт.

8

81866261

CARRIER

CARRIER - Heavy Duty, Incl 1 - 7

2шт.

9

81867247

AXLE

STD

2шт.

9

81867248

SHAFT

Heavy Duty

2шт.

10

83997554

STUD

STD, Incl in 9

16шт.

10

83955490

SCREW,3/4"-16 x 59mm

Heavy Duty, Incl in 9

16шт.

11

82959374

BEARING CUP

STD

2шт.

11

81866472

CUP

Heavy Duty

2шт.

12

82959376

BEARING ASSY

STD

2шт.

12

81866473

BEARING ASSY

Heavy Duty

2шт.

13

81866390

OIL SEAL,88.52mm ID x 123.29mm OD x 22.94mm Thk

REAR - STD

2шт.

Applied for the Flange Axle VAR 390331

1шт.

13

83958913

SEAL,101.22mm ID x 135.2mm OD x 15.01mm Thk

REAR - Heavy Duty

2шт.

Applied for the Bar Axle VAR 330331

1шт.

14

82959382

BEARING ASSY

STD, Incl 11 - 12

2шт.

Applied for the Flange Axle VAR 390331

1шт.

14

81866516

BEARING ASSY,85.72mm ID x 133.38mm OD x 30.37mm W

Heavy Duty, Incl 11 - 12

2шт.

Applied for the Bar Axle VAR 330331

1шт.

15

83997585

WASHER,19.3mm ID x 86mm OD x 14.7mm Thk

2шт.

16

81866476

BEARING ASSY

Roller - STD

2шт.

Applied for the Flange Axle VAR 390331

1шт.

16

81866477

BEARING ASSY

Roller - Heavy Duty

2шт.

Applied for the Bar Axle VAR 330331

1шт.

17

81866470

BEARING CUP

Inner - STD

2шт.

Applied for the Flange Axle VAR 390331

1шт.

17

81866471

CUP

Inner - Heavy Duty

2шт.

Applied for the Bar Axle VAR 330331

1шт.

18

81866520

BEARING ASSY

STD, Incl 16 - 17

2шт.

Applied for the Flange Axle VAR 390331

1шт.

18

81866519

BEARING ASSY

Heavy Duty, Incl 16 - 17

2шт.

Applied for the Bar Axle VAR 330331

1шт.
