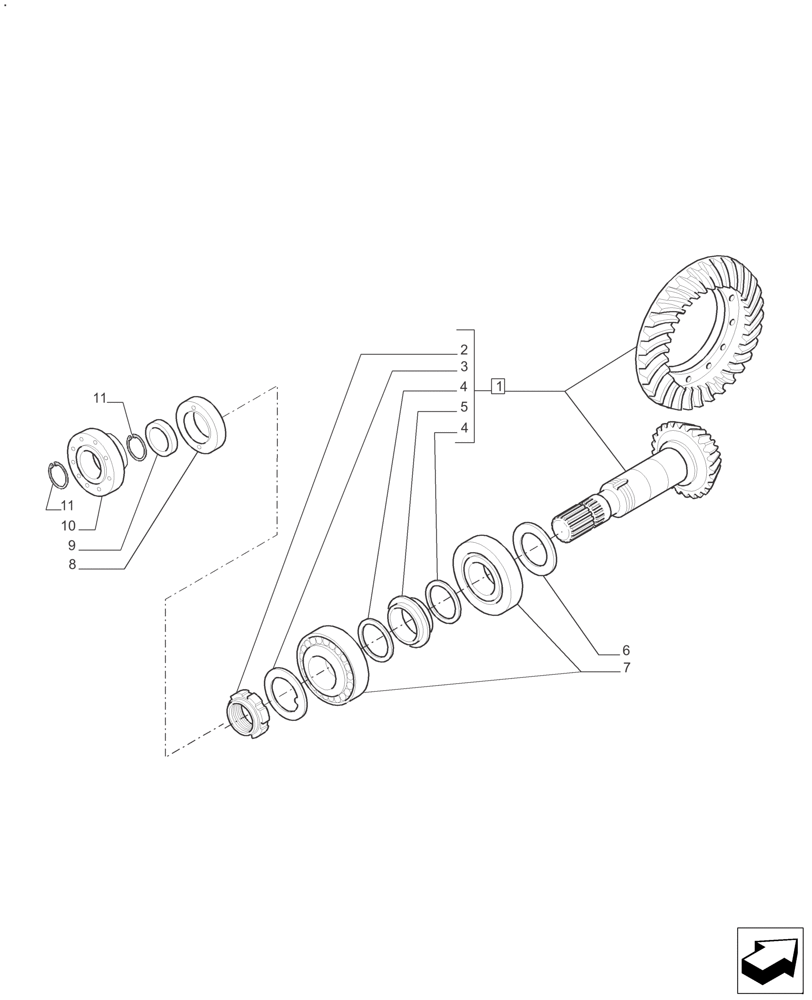

Запчасти Case IH FARMALL 110A (25.102.AC[01]) - BEVEL GEAR - FRONT AXLE/ PINION SET - STANDARD DUTY (108 & 118 HP) (25) - FRONT AXLE SYSTEM

1

82932456

GEAR SET

Bevel, Z11/32 (STD Duty, Incl 2 - 5

1шт.

1

CAR066875

BEVEL GEAR

Bevel Gear Set Z10/32 (Low Profile), Incl 2 - 5

1шт.

2

83936146

NUT

Ring Nut M40x1.5

1шт.

3

83936151

WASHER

1шт.

4

83990180

WASHER

2шт.

5

83984352

SPACER

Collapsible Spacer

1шт.

6

CAR132265

SPACER

Shim 2.50mm

1шт.

6

CAR132266

SPACER

Shim 2.60mm

1шт.

6

CAR132267

SHIM

Shim 2.70mm

1шт.

6

CAR132268

SPACER

Shim 2.80mm

1шт.

6

CAR132269

SPACER

Shim 2.90mm

1шт.

6

CAR132270

SHIM

Shim 3.00mm

1шт.

6

CAR132271

SPACER

Shim 3.10mm

1шт.

6

CAR132272

SHIM

Shim 3.20mm

1шт.

6

CAR132273

SPACER

Shim 3.30mm

1шт.

6

CAR132274

SHIM

Shim 3.40mm

1шт.

7

28042230

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm W

Bearing

2шт.

8

82920198

FLANGE

Flange

1шт.

9

81870159

SEAL,35mm ID x 65mm OD x 17.5mm Thk

1шт.

10

82920197

FLANGE

Pinion Shaft

1шт.

11

87580391

SNAP RING

Snap Ring

2шт.
