Запчасти Case IH FARMALL 110A (21.154.AA[03]) - TRANSMISSION - GEARS & SHAFT CLUTCH ASSY. 8+8 POWER SHUTTLE (21) - TRANSMISSION

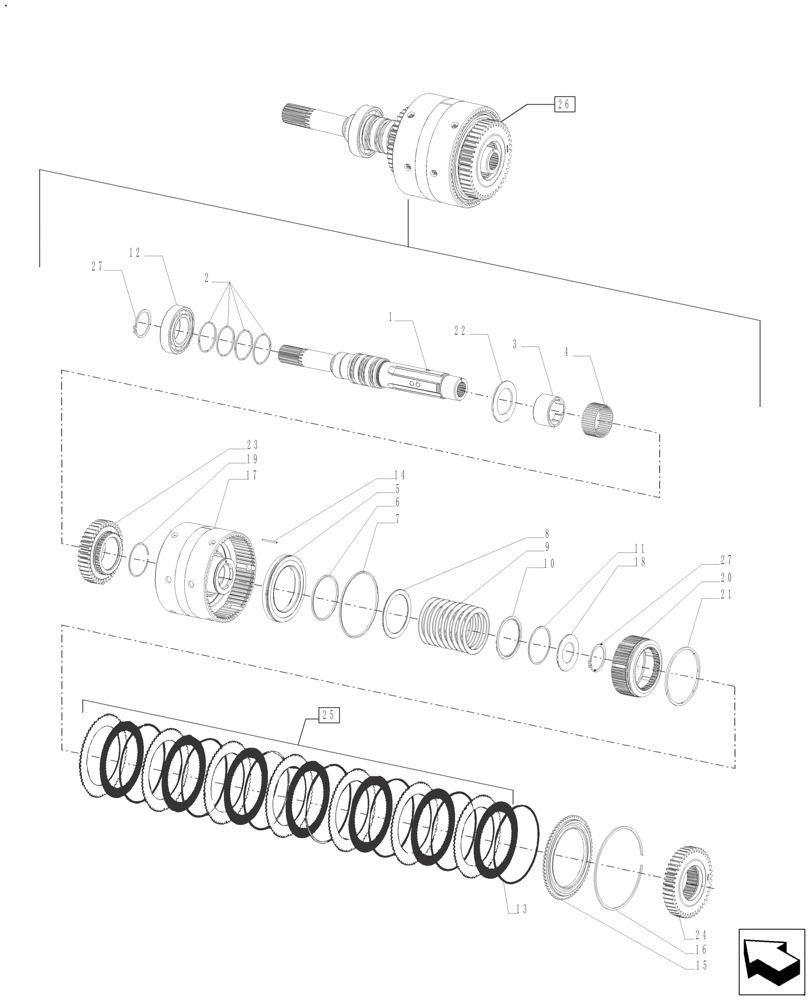

Схема запчастей Case IH FARMALL 110A - (21.154.AA[03]) - TRANSMISSION - GEARS & SHAFT CLUTCH ASSY. 8+8 POWER SHUTTLE (21) - TRANSMISSION
9
18
14
12
13
23
6
10
27
5
11
20
3
2
7
26
16
22
25
24
27
8
19
15
1
4
21
17

Артикул

Название

Примечание

Количество

1

84474940

SHAFT

Shaft Forward Reverse

1шт.

2

5175988

SEALING RING,55.6mm ID x 60mm OD x 2.42mm Thk

4шт.

3

84371350

SPACER,50mm ID x 60mm OD x 36mm W

Distance Tooth

1шт.

4

73336559

NEEDLE BEARING,60mm ID x 65mm OD x 30mm W

Bearing 60 x 65 x 30

1шт.

5

87325223

PISTON

2шт.

6

5162398

SEALING RING,82.55mm ID x 90mm OD x 3.2mm Thk

2шт.

7

5137563

GASKET,124.55mm ID x 132mm OD x 3.2mm Thk

External

2шт.

8

47137663

PISTON RING,77mm ID x 97mm OD x 2.5mm Thk

2шт.

9

5194761

SPRING,73mm ID x 93mm OD x 3.7mm Thk

18шт.

10

47137711

CIRCLIP,72.2mm ID x 85mm OD x 2.8mm Thk

2шт.

11

47137712

SNAP RING,70.2mm ID x 76mm OD x 1.5mm Thk

2шт.

12

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.

13

81878948

SPRING,162.58mm ID

14шт.

14

84371325

PIN

Pin No Spinning

2шт.

15

87325224

PLATE,Z66, 117mm ID

2шт.

16

5194760

SNAP RING,163mm ID

2шт.

17

84371287

CLUTCH HOUSING

Hosing Clutch Complete

1шт.

18

84371347

THRUST WASHER,50.2mm ID x 90mm OD x 3mm Thk

Thrust Washer Gear

2шт.

19

84392873

SNAP RING,M65

Circlip Seeger 65

1шт.

20

84371327

GEAR,14T Internal / 63T External

Hub Clutch

2шт.

21

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

2шт.

22

84371348

THRUST WASHER,53.1mm ID x 82mm OD x 3mm Thk

Thrust Washer Gear

1шт.

23

84371331

GEAR

Reverse Driven Gear

1шт.

24

84371351

GEAR

Driven Gear Shuttle

1шт.

25

84371291

CLUTCH PLATE

Clutch Plate Set

2шт.

26

73336558

CLUTCH PACK

Drive Train Control (FWD - REW) Incl 1, 3 Thru 11, 13 Thru 26

1шт.

26

73336558R

REMAN-CLUTCH ASSY

Reman Drive Train Control (FWD - REW) Incl 1, 3 Thru 11, 13 Thru 26

1шт.

26

73336558C

CORE-CLUTCH ASSEMBLY

Core Return Number

1шт.

27

11069376

SNAP RING,M50, Ext

2шт.

Выбрано товаров: 29
