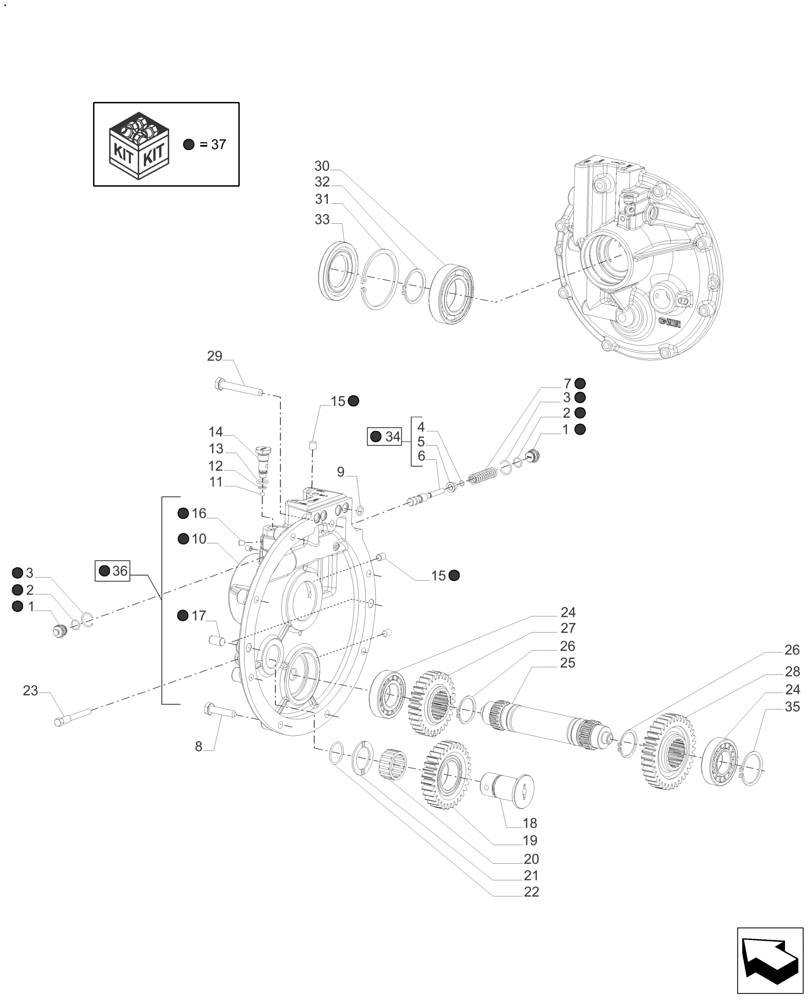

Запчасти Case IH FARMALL 110A (21.154.AA[01]) - FRONT COVER 8+8 POWER SHUTTLE - 30 KM / 40 KM (21) - TRANSMISSION

1

84495277

PLUG

Spool plug seat

2шт.

2

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.

3

13420776

RING

2шт.

4

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 34

1шт.

5

NSS

NOT SOLD SEPARAT

Spacer, Incl in 34

1шт.

6

NSS

NOT SOLD SEPARAT

Snap Ring M8, Int, Incl in 34

1шт.

7

47123788

SPRING,15mm OD x 87.5mm L

1шт.

8

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

7шт.

9

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

10

NSS

NOT SOLD SEPARAT

Clutch Support, Incl in 36

1шт.

11

83416928

BALL,1/4 OD

1шт.

12

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

13

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

14

84495298

VALVE

Bidirectional Valve Body

1шт.

15

NSS

NOT SOLD SEPARAT

Plug 10mm, Incl in 36

6шт.

16

NSS

NOT SOLD SEPARAT

Plug 7mm, Incl in 36

2шт.

17

83980528

DOWEL,12.71mm OD x 20.57mm L

Incl in 36

2шт.

18

84371333

PIN,35mm OD x 71mm L

Intermediate Gear Pin

1шт.

19

84371338

GEAR

Returning Reverse Gear

1шт.

20

81863099

BEARING ASSY,35mm ID x 45mm OD x 19.8mm W

1шт.

21

82012540

THRUST WASHER,35mm ID x 52mm OD x 2.5mm Thk

1шт.

22

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

23

5199330

LOCK PIN

Reverse Shaft Lock Treaded Pin

1шт.

24

5151460

ROLLER BEARING,35mm ID x 72mm OD x 17mm W

2шт.

25

84371343

SHAFT

Counter Shaft Cluster

1шт.

26

370006

SNAP RING,M40, Ext

2шт.

27

84371340

GEAR

GEAR REVERSE DRIVEN

1шт.

28

84371342

GEAR

GEAR COUNTER SHAFT CLUSTER

1шт.

29

15971324

SCREW,Hex, M10 x 1.25 x 75mm, Cl 8.8

1шт.

30

210058

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

31

370013

SNAP RING,M90 x 3mm Thk, Internal

1шт.

32

11069376

SNAP RING,M50, Ext

1шт.

33

5164500

SEAL,50mm ID x 90mm OD x 10mm Thk

1шт.

34

47471037

VALVE

Assy. Incl 4 - 6, Start Year: 03-MAY-13

1шт.

35

370018

SNAP RING,M72, Internal

1шт.

36

84495254

SUPPORT

Support Clutch Assy 8+8 PS, Incl 10, 15 - 17

1шт.

37

47499061

HOUSING

Support Valve Assy 8+8, Incl 1 - 7, 10, 15 - 17, 34, 36, Start Year: 03-MAY-13

1шт.
