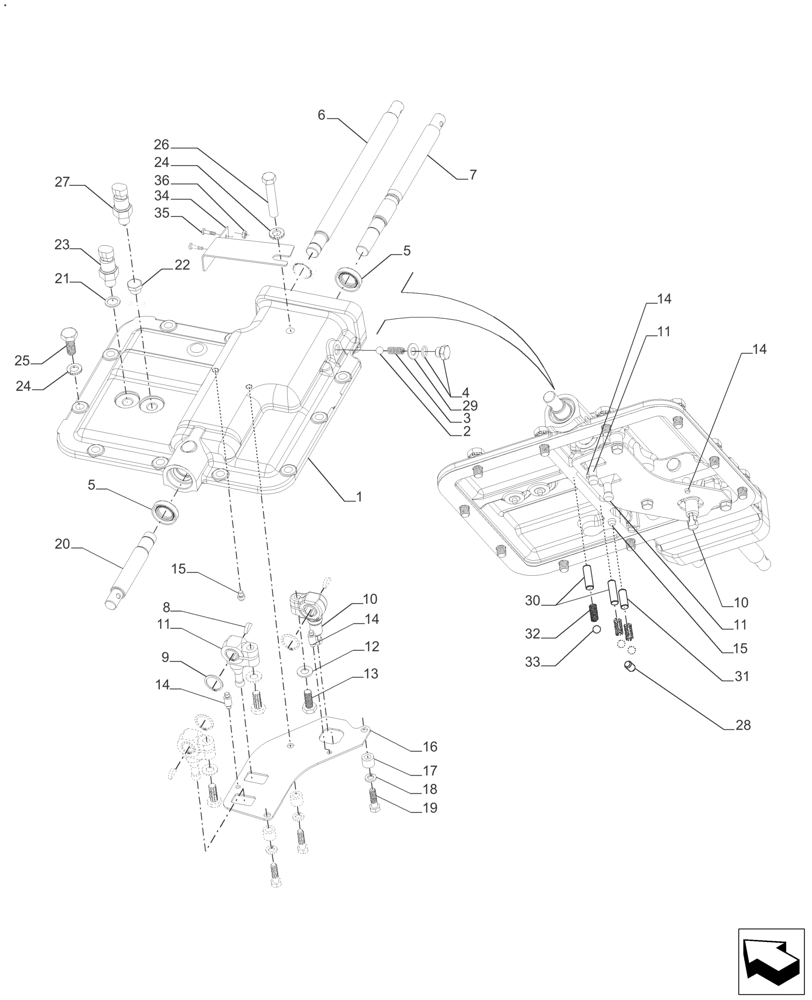

Запчасти Case IH FARMALL 110A (21.140.AN) - COVER GEAR SHIFT 8+8, MECHANICAL - 30 KM / 40 KM (21) - TRANSMISSION

1

73336919

COVER

Cover Gear Shift

1шт.

2

83424343

BALL,3/8"

1шт.

3

81817877

SPRING

1шт.

4

82984452

PLUG,1/2"-20

1шт.

5

83905354

SEAL

3шт.

6

73336910

SELECTOR

Rail Selector High/Low

1шт.

7

47724155

TRACK ASSY

Rail Selector Speeds

1шт.

Need to be used with PN 47724249 Adapter (ROPS) or PN 47724288 Adapter (CAB)

1шт.

8

81457109

WOODRUFF KEY,#8, 3/4" x 5/32" Thk

3шт.

9

83929579

SNAP RING,11/16", Ext

3шт.

10

83958312

FINGER

Velocity Trans. Shift Control

1шт.

11

83952088

FINGER

Range Trans. Shift Control

2шт.

12

83907387

LOCK WASHER,3/8"

3шт.

13

81821205

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

14

83955452

DOWEL

2шт.

15

81815256

DOWEL

1шт.

16

73336917

RETAINER

Plate Stop

1шт.

17

83955457

SPACER

3шт.

18

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

19

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

20

73336909

SELECTOR

Rail Selector FWD/REV

1шт.

21

2852356

SEALING WASHER

2шт.

22

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

23

47132956

SENSOR

1шт.

24

85700672

LOCK WASHER,M10

11шт.

25

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

10шт.

26

11288028

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

Hex. Bolt M10 x 1.25 x 60

1шт.

27

47132957

SENSOR

Switch Assy. W/Creeper

1шт.

28

81804917

DOWEL,.373" x .723" L

1шт.

29

10280060

SEAL,M14.2 x 20 x 1.5

1шт.

30

83417152

PIN,9.53mm OD x 32.26mm L

2шт.

31

81817971

PIN,9.53mm OD x 24.64mm L

1шт.

32

83407013

SPRING

3шт.

33

83424343

BALL,3/8"

3шт.

34

47638254

BRACKET

BASE, RELAY

1шт.

35

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

2шт.

36

86509264

NUT,M4, Cl 10

2шт.
