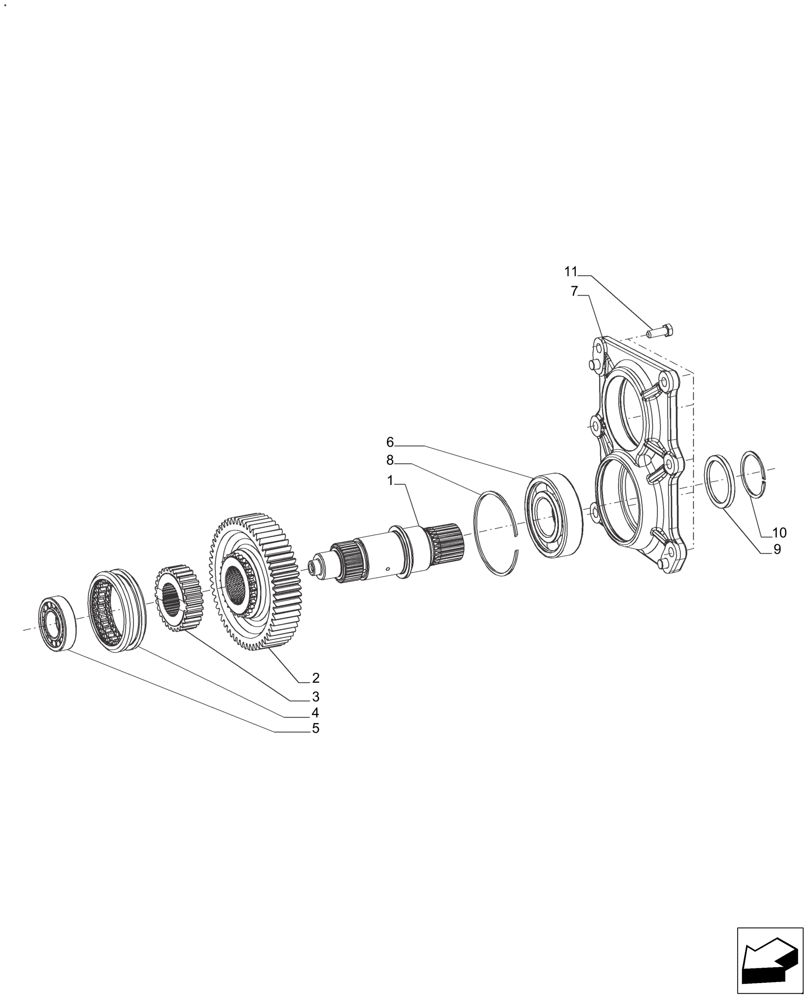

Запчасти Case IH FARMALL 110A (21.140.AE[05]) - TRANSMISSION - GEARS & SHAFT 8+8 (POWER SHUTTLE / MECHANICAL), 16+8 (POWER SHUTTLE / DUAL POWER) 40 KM (21) - TRANSMISSION

1

84470907

SHAFT

SHAFT TRANSMISSION OUPUT

1шт.

2

84381277

GEAR

GEAR LOW RANGE DRIVEN ASSY

1шт.

3

84371399

SLEEVE

GEAR COUPLING INNER

1шт.

4

84371401

SLEEVE

SLEEVE COUPLING SLIDING

1шт.

5

28102110

BEARING ASSY

1шт.

6

20229990

BALL BEARING,50mm ID x 110mm OD x 27mm W

1шт.

7

84470917

RETAINER

RETAINER-TRANSMISSION SHAFT BEARING

1шт.

8

81864687

SNAP RING,M133 OD

1шт.

9

84470909

SPACER

SPACER, SHAFT TRANS. OUTPUT

1шт.

10

84470910

SNAP RING

SNAP RING 42

1шт.

11

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

, Start Year: 28-JAN-13

6шт.

12

83980528

DOWEL,12.71mm OD x 20.57mm L

2шт.
