(0.88.0) - AIR CONDITIONING UNIT - BELTS AND COMPRESSOR (VAR.330441-331641)

Запчасти Case IH FARMALL 105U (0.88.0) - AIR CONDITIONING UNIT - BELTS AND COMPRESSOR (VAR.330441-331641) (01) - ENGINE

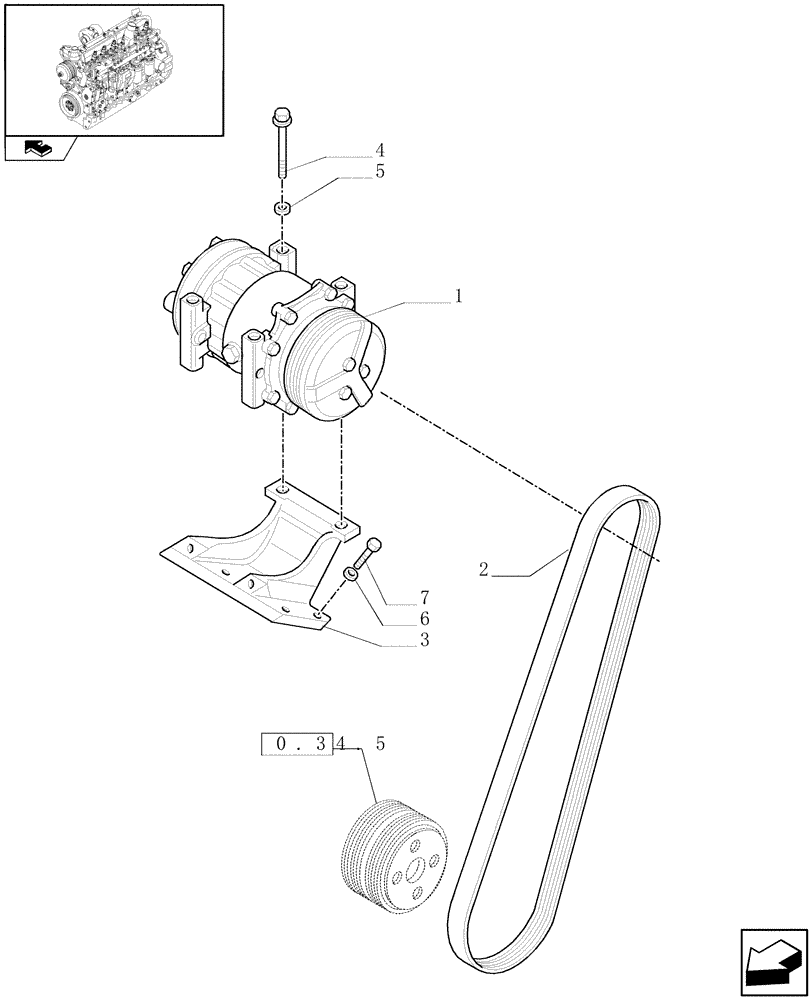

Схема запчастей Case IH FARMALL 105U - (0.88.0) - AIR CONDITIONING UNIT - BELTS AND COMPRESSOR (VAR.330441-331641) (01) - ENGINE
0.34.5
2
5
6
7
home
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87519620

AIR COMPRESSOR

1шт.

1

87519620R

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor

1шт.

1

87519620C

CORE-COMPRESSOR

Return Number, AIR COMPRESSOR

1шт.

2

87399980

BELT

1шт.

3

87380225

SUPPORT

1шт.

4

16046134

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

5

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

4шт.

6

11198574

BELLEVILLE WASHER,Belleville, M10.5

3шт.

7

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.
