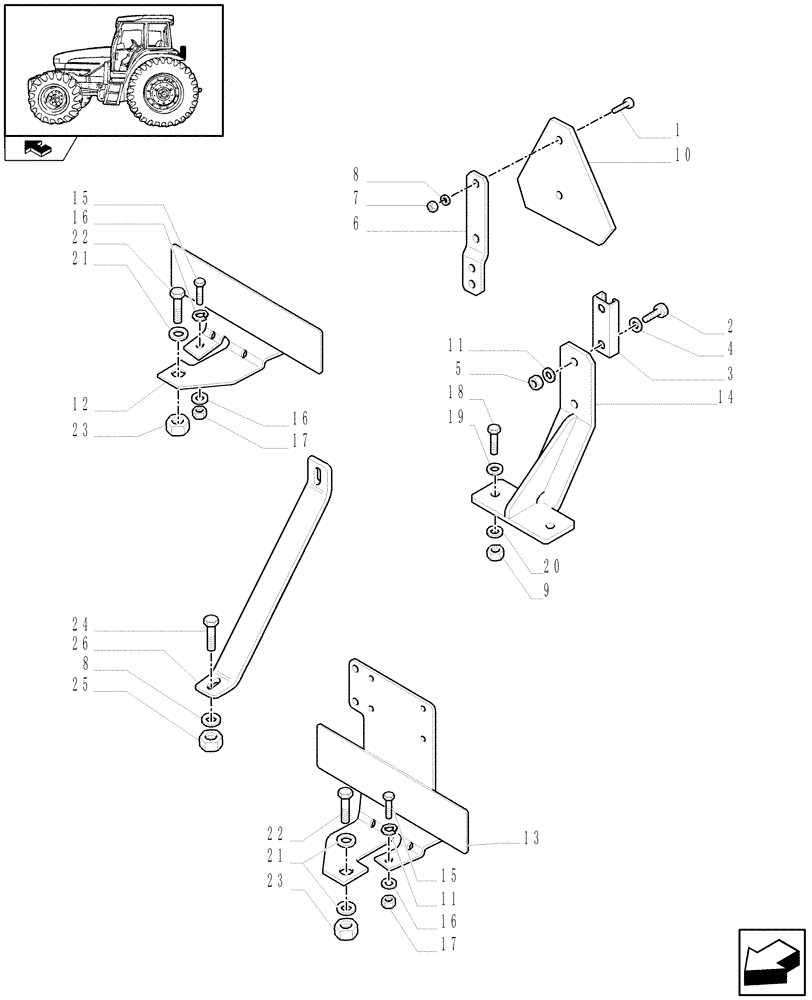

Запчасти Case IH FARMALL 105U (1.98.3/01) - NORTH AMERICA VERSION - SMV EMBLEM WITH SUPPORT (VAR.331964) (10) - OPERATORS PLATFORM/CAB

1

13276224

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 8.8, Full Thd

M6 x 12

2шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

3

5148517

SUPPORT

L/CAB

1шт.

4

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

5

16100814

NUT,M8, Cl 8, DAC

2шт.

6

5148516

BRACKET

L/CAB

1шт.

7

15896214

NUT,M6, Cl 8

2шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

8

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

9

16100814

NUT,M8, Cl 8, DAC

2шт.

10

86547710

EMBLEM

KIT L/CAB

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

47129828

SUPPORT

RH, W/CAB

1шт.

13

47129827

SUPPORT

LH, W/CAB

1шт.

14

47123030

SUPPORT

L/CAB

1шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

16

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

8MM

2шт.

16

82011888

WASHER

2шт.

17

16100814

NUT,M8, Cl 8, DAC

2шт.

18

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

L/CAB

4шт.

19

14499404

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

8 x 14

2шт.

20

11182574

BELLEVILLE WASHER,Belleville, M8.4

2шт.

21

10520004

WASHER,12.2mm ID x 22mm OD x 3mm Thk

4шт.

22

11112424

SCREW,Hex, M12 x 30mm, Cl 8.8, Full Thd

2шт.

23

11702914

NUT,M12, Cl 8

2шт.

24

10902014

BOLT,Hex, M6 x 12mm, Cl 5.8, Full Thd

1шт.

25

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

25

15896211

NUT,M6, Cl 8

1шт.

26

47129829

BRACKET

W/CAB

1шт.
