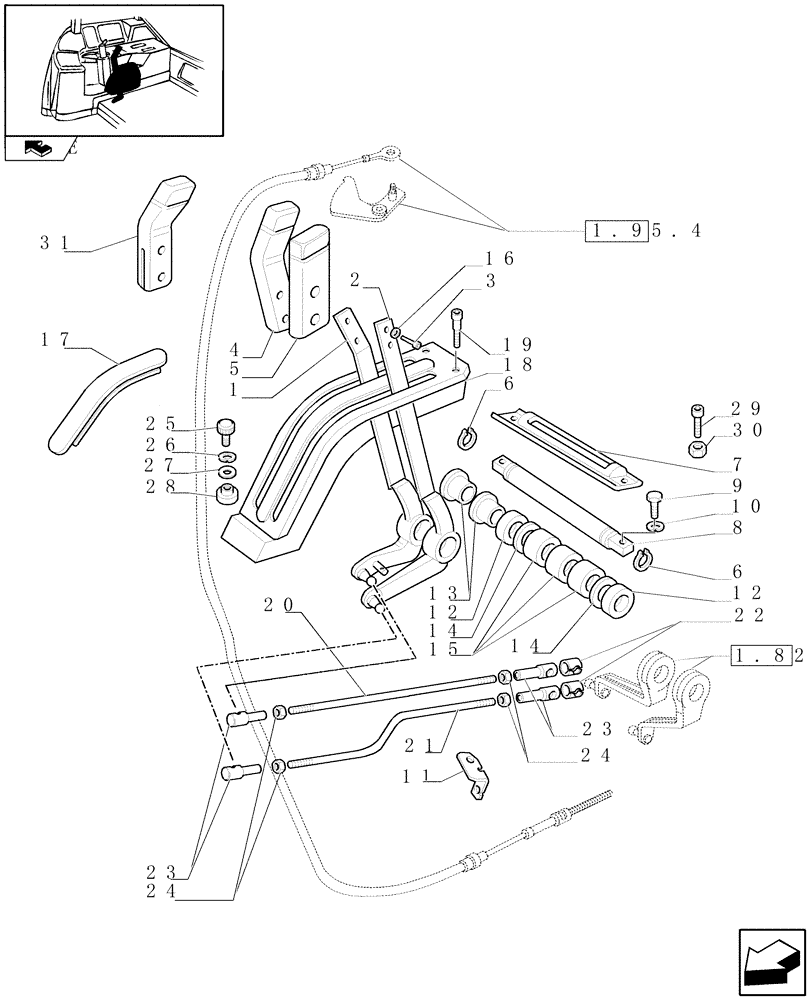

Запчасти Case IH FARMALL 105U (1.96.1[01]) - HYDRAULIC LIFT OUTER CONTROLS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

5166778

LEVER

1шт.

2

47128657

LEVER

1шт.

3

5113531

SCREW,M4 x 10mm, Cl 8.8

M4 x 10

4шт.

3

14302928

BOLT,M4 x 0.7 x 10mm, Cl 8.8

M4 x 10, VAR.330368

4шт.

4

5126312

KNOB

, Serial Range: -C6013

1шт.

5

5126315

KNOB,Black

1шт.

6

11066976

SNAP RING,M21, Ext

2шт.

7

5134733

COVER

1шт.

8

5126024

PIN,21mm OD x 208mm L

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

11

5129403

BRACKET

1шт.

12

5154841

SPACER,21mm ID x 35mm OD x 12mm L

2шт.

13

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

2шт.

14

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

21 x 35 x 2

2шт.

15

5154839

SPACER,21mm ID x 35mm OD x 22mm L

3шт.

16

10569074

LOCK WASHER

D=4

4шт.

17

5128708

COVER

2шт.

18

5128701

LEVER GUIDE

1шт.

19

15958804

SELF-TAP SCREW,Pan Hd, M5 x 16

4шт.

20

5166776

TIE-ROD

1шт.

21

5171468

TIE-ROD

1шт.

22

10125574

CLAMP,13mm

2шт.

23

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

8 x 13

4шт.

24

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

4шт.

25

47133460

KNOB

2шт.

26

11087776

CIRCLIP,Ext., M6, BLO

2шт.

27

5108290

WASHER,10.5mm ID x 18mm OD x 3mm Thk

2шт.

28

47133761

STOP

2шт.

29

5134736

SCREW,M8 x 22mm, Cl 8.8

M8 x 20

4шт.

30

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

31

5126318

KNOB,Black

Black, Start Serial: D6013

1шт.
