Запчасти Case IH FARMALL 105U (1.89.6[04]) - IMPLEMENT CARRIER - SUPPORT & STABILIZER BAR (09) - IMPLEMENT LIFT

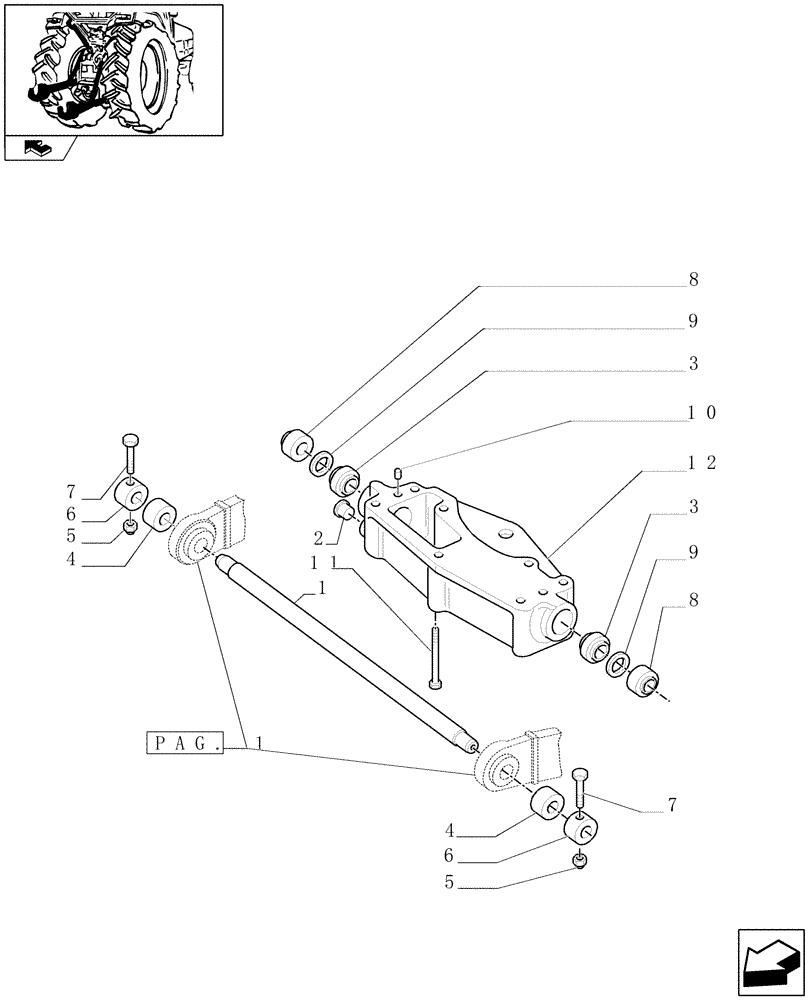

Схема запчастей Case IH FARMALL 105U - (1.89.6[04]) - IMPLEMENT CARRIER - SUPPORT & STABILIZER BAR (09) - IMPLEMENT LIFT
4
2
11
7
pag. 1
home
3
12
8
10
7
4
6
5
5
6
9
3
1
8
9

Артикул

Название

Примечание

Количество

1

5171674

PIN,30mm OD x 588mm L

Sensing

1шт.

2

5171670

PLUG

1шт.

3

5109977

SPHERICAL BEARING,30mm ID x 47mm OD x 22mm W

2шт.

4

5177788

SPACER,25.5mm ID x 40mm OD x 14mm L

2шт.

5

12574511

LOCK NUT,M10 x 1.25, Cl 8

2шт.

6

5116247

RING,24mm ID x 38.4mm OD x 25mm L

2шт.

7

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

2шт.

8

5171675

SPACER,46.98mm ID x 54.05mm OD x 40.5mm L

2шт.

9

47129340

OIL SEAL,28.1mm ID x 42.5mm OD x 13.8mm Thk

2шт.

10

5119529

DOWEL,15mm OD x 22mm L

M15 x 22

2шт.

11

15864224

BOLT,Hex, M16 x 1.5 x 115mm, Cl 8.8

7шт.

11

15981324

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

6шт.

12

5171671

SUPPORT

1шт.

Выбрано товаров: 13
