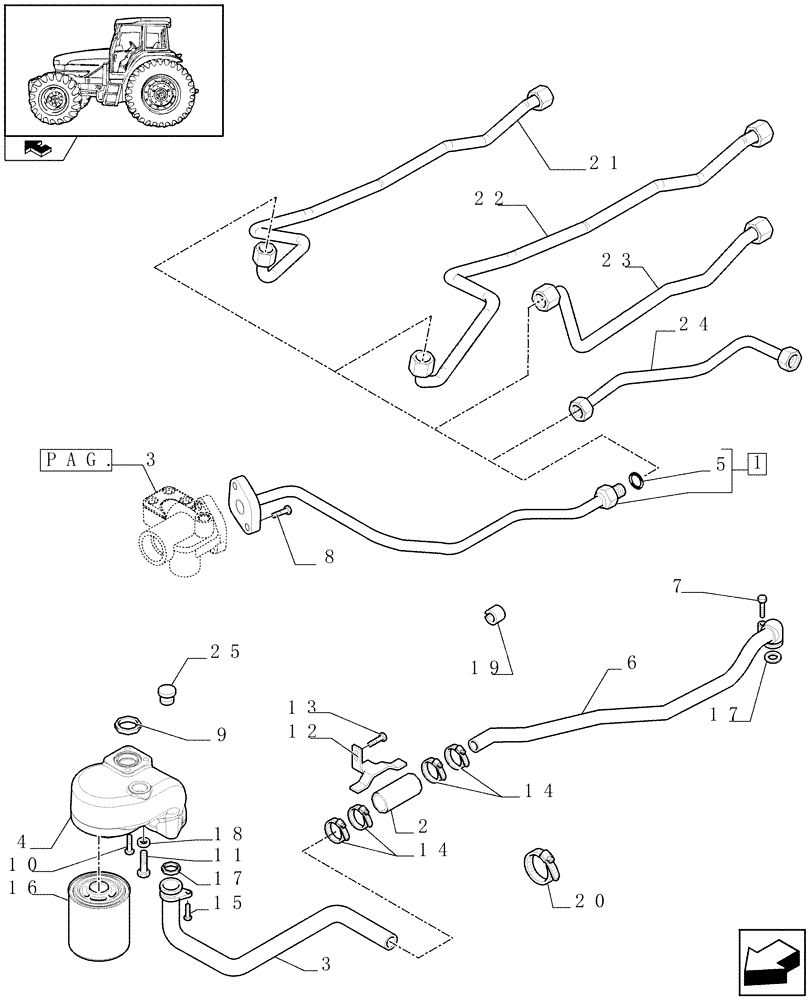

Запчасти Case IH FARMALL 105U (1.82.1[02]) - LIFT - PIPES & PARTS (07) - HYDRAULIC SYSTEM

1

87367815

TUBE,18 mm DIA x 559.5, 208 mm L

Front

1шт.

2

47128011

SLEEVE

1шт.

3

87308977

TUBE,45 mm OD

Front Suction

1шт.

4

47129567

FILTER HEAD

1шт.

5

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

6

87309021

TUBE,45 mm OD

Rear Suction

1шт.

7

15541221

SCREW,Hex, M12 x 1.25 x 70mm, Cl 8.8

1шт.

8

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

9

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

10

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

14309021

HEX SOC SCREW,M8 x 1 x 70mm, Cl 8.8

1шт.

12

47129743

SUPPORT

1шт.

13

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

14

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

40 x 60MM

4шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

84168722

HYDRAULIC OIL FILTER

1шт.

17

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

18

14330260

SEALING WASHER,M8.2 x 12 x 1

1шт.

19

4959735

SPACER,18mm ID x 25mm OD x 30mm L

2шт.

20

13000990

COLLAR,60mm - 80mm, Worm Gear

60 x 80MM

2шт.

20

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

21

87309867

TUBE

W/Kontak Remotes, L/Trailer Brake Valve

1шт.

22

87309865

TUBE

W/KBosch Remotes, L/Trailer Brake Valve

1шт.

23

87309869

HYD TUBE

1шт.

W/VAR.330370-331370, Trailer Brake Valve

1шт.

24

47129758

HYD TUBE

1шт.

W/VAR.330412-331412-332412-333412, Trailer Brake Valve for Italy

1шт.

25

14328801

PLUG,M22, Tapered

M22

1шт.

W/VAR.330186-333186-330386-333386, Mid Mount Valves

1шт.
