(1.40.3/10[01]) - FRONT AXLE W/LIMITED SLIP DIFF - DIFFERENTIAL GEARS AND SHAFT (VAR.330323)

Запчасти Case IH FARMALL 105U (1.40.3/10[01]) - FRONT AXLE W/LIMITED SLIP DIFF - DIFFERENTIAL GEARS AND SHAFT (VAR.330323) (04) - FRONT AXLE & STEERING

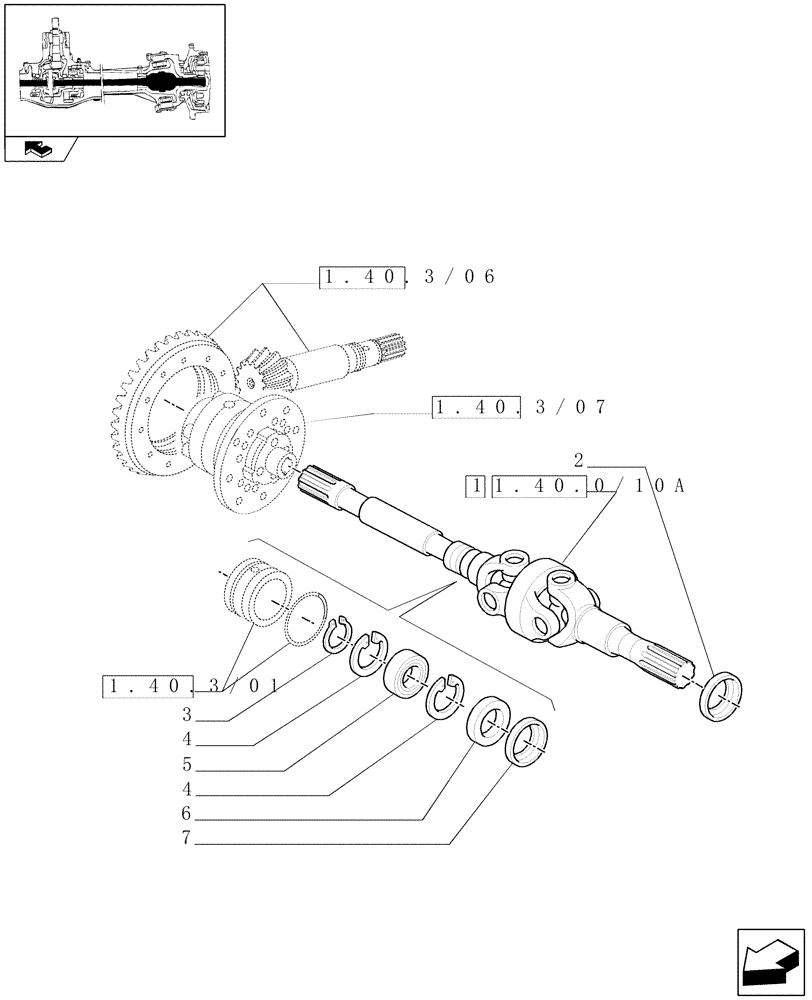

Схема запчастей Case IH FARMALL 105U - (1.40.3/10[01]) - FRONT AXLE W/LIMITED SLIP DIFF - DIFFERENTIAL GEARS AND SHAFT (VAR.330323) (04) - FRONT AXLE & STEERING
1.40.0/10a
home
7
1
3
4
6
2
4
5
1.40.3/07
1.40.3/06
1.40.3/01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87374566

HALF SHAFT,908.5mm L

LH

1шт.

1

87374569

ARTICULATED SHAFT,962.5mm L

RH

1шт.

2

87521513

OIL SEAL

47 x 65 x 19

2шт.

3

11067876

SNAP RING,M30, Ext

2шт.

4

11060676

CIRCLIP,M55, Int

4шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

M30 x 55 x 13

2шт.

6

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

Выбрано товаров: 8
