Запчасти Case IH FARMALL 105U (1.40.2/02) - FRONT AXLE WITH DIFFERENTIAL LOCK AND BRAKES - STEERING KNUCKLE AND HUBS (VAR.330415) (04) - FRONT AXLE & STEERING

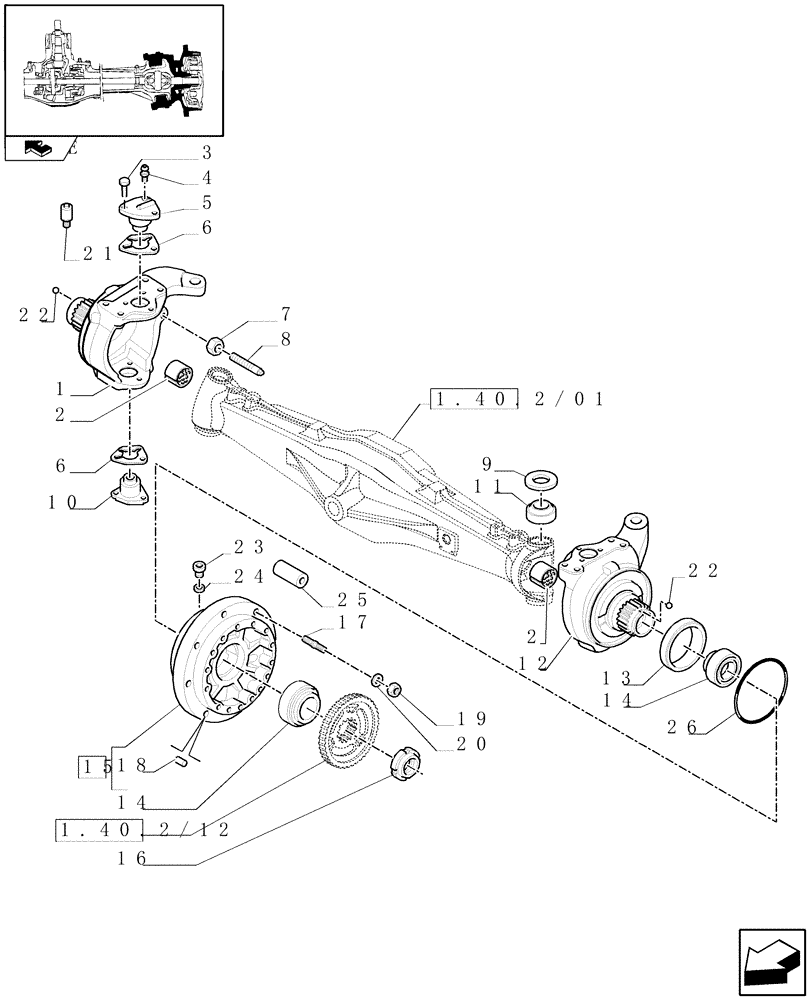

Схема запчастей Case IH FARMALL 105U - (1.40.2/02) - FRONT AXLE WITH DIFFERENTIAL LOCK AND BRAKES - STEERING KNUCKLE AND HUBS (VAR.330415) (04) - FRONT AXLE & STEERING
14
24
2
16
6
9
4
2
22
26
21
22
19
25
11
1
3
7
23
13
home
1.40.2/01
12
17
5
8
1.40.2/12
14
18
15
6
20
10

Артикул

Название

Примечание

Количество

1

87381868

STUB AXLE/STEERING S

RH, ASSY

1шт.

2

87529111

BUSHING,47.1mm ID x 51mm OD x 30mm L

47 x 51 x 30

2шт.

3

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

13407211

LUBE NIPPLE,M10 x 1

4шт.

5

87383399

PIN

UPPER

2шт.

6

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

6

5100791

SHIM,.20mm Thk

1шт.

6

5100792

SHIM,.25mm Thk

1шт.

6

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

7

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

8

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

9

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

50 x 62 x 7

4шт.

10

87383400

PIN

Lower

2шт.

11

87523063

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

28 x 52 x 16

4шт.

12

87381867

STUB AXLE/STEERING S

LH

1шт.

13

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

165X190X15.5/16.5

2шт.

14

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

4шт.

15

84135224

HUB

2шт.

16

5142020

NUT,Hex, M75 x 2

2шт.

17

87618916

STUD

16шт.

18

4985063

DOWEL,12mm OD x 20mm L

12 x 20

4шт.

19

12164121

NUT,M16 x 1.5, Cl 10

16шт.

20

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

21

13413290

BREATHER

2шт.

22

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2шт.

23

10278340

PLUG,M28 x 1.5 x 11, Brass

2шт.

24

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

2шт.

25

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

16шт.

26

5171919

SEAL,Square, 3.4mm Thk x 193.6mm ID, 80 Duro

2шт.

Выбрано товаров: 29
