Запчасти Case IH FARMALL 105U (1.40.2/01) - FRONT AXLE WITH DIFFERENTIAL LOCK AND BRAKES - BOX & RELEVANT PARTS (VAR.330415) (04) - FRONT AXLE & STEERING

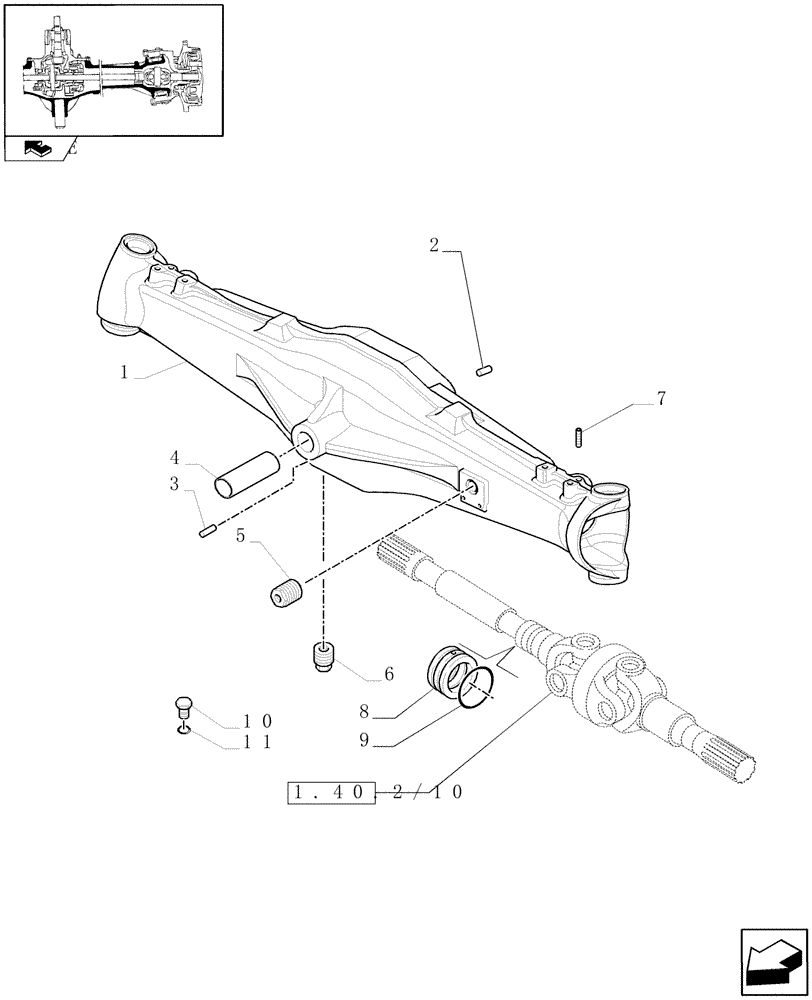

Схема запчастей Case IH FARMALL 105U - (1.40.2/01) - FRONT AXLE WITH DIFFERENTIAL LOCK AND BRAKES - BOX & RELEVANT PARTS (VAR.330415) (04) - FRONT AXLE & STEERING
1
7
5
home
1.40.2/10
10
6
4
3
8
11
2
9

Артикул

Название

Примечание

Количество

1

87660410

BOX

Incl.2-4

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

4966244

PIN,5mm OD x 15mm L

D=5 x 15

1шт.

4

47123533

PIN,52mm OD x 131mm L

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

M22 x 1.5

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

87373554

SET SCREW,Hdls Hex Skt, M12 x 1.25 x 22mm

2шт.

8

87371275

BUSHING,55mm ID x 75mm OD x 38mm L

2шт.

9

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

10

5111628

PLUG

D=10.5

2шт.

11

9823349

O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro

2шт.

Выбрано товаров: 11
