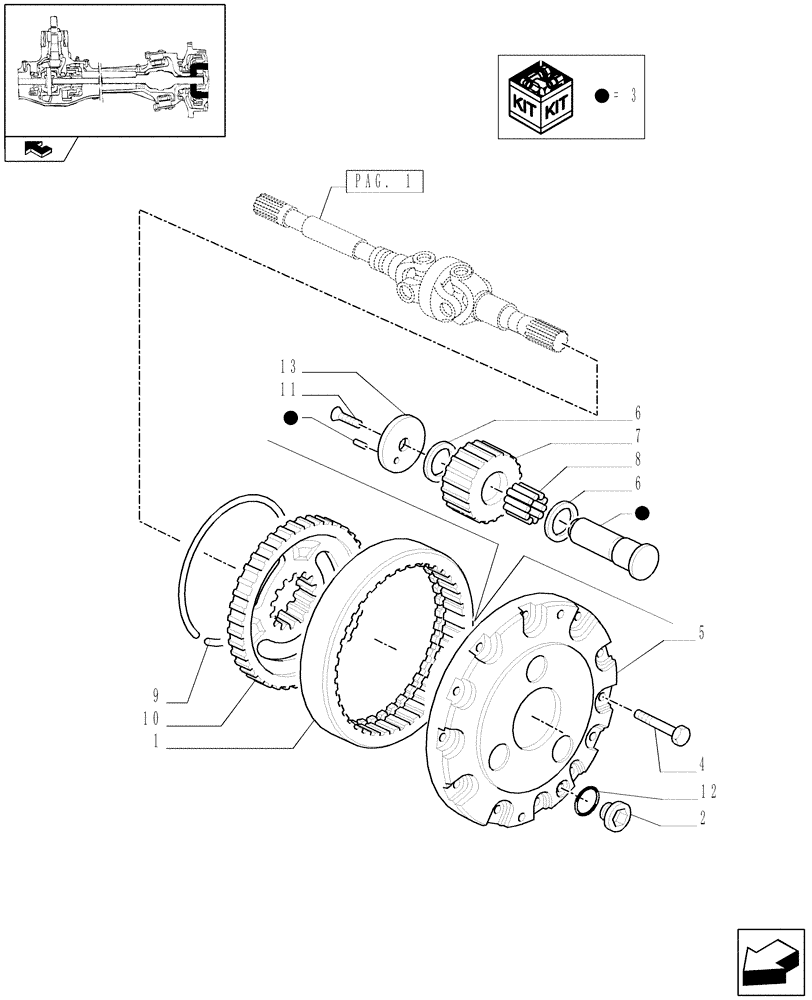

Запчасти Case IH FARMALL 105U (1.40.1/10[02]) - FRONT AXLE WITH DIFFERENTIAL LOCK - DIFFERENTIAL GEARS AND SHAFT (VAR.330308) (04) - FRONT AXLE & STEERING

1

87383397

RING GEAR

2шт.

2

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

3

87471638

PIN

3шт.

4

11306934

BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd

24шт.

5

87667235

SUPPORT

2шт.

6

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

0.8MM

12шт.

7

87383440

IDLER PINION

6шт.

8

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

9

87383398

SNAP RING

2шт.

10

87383396

DISC

2шт.

11

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

M12 x 1.25 x 35

6шт.

12

9823349

O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro

2шт.

13

87660404

SPACER

6шт.
