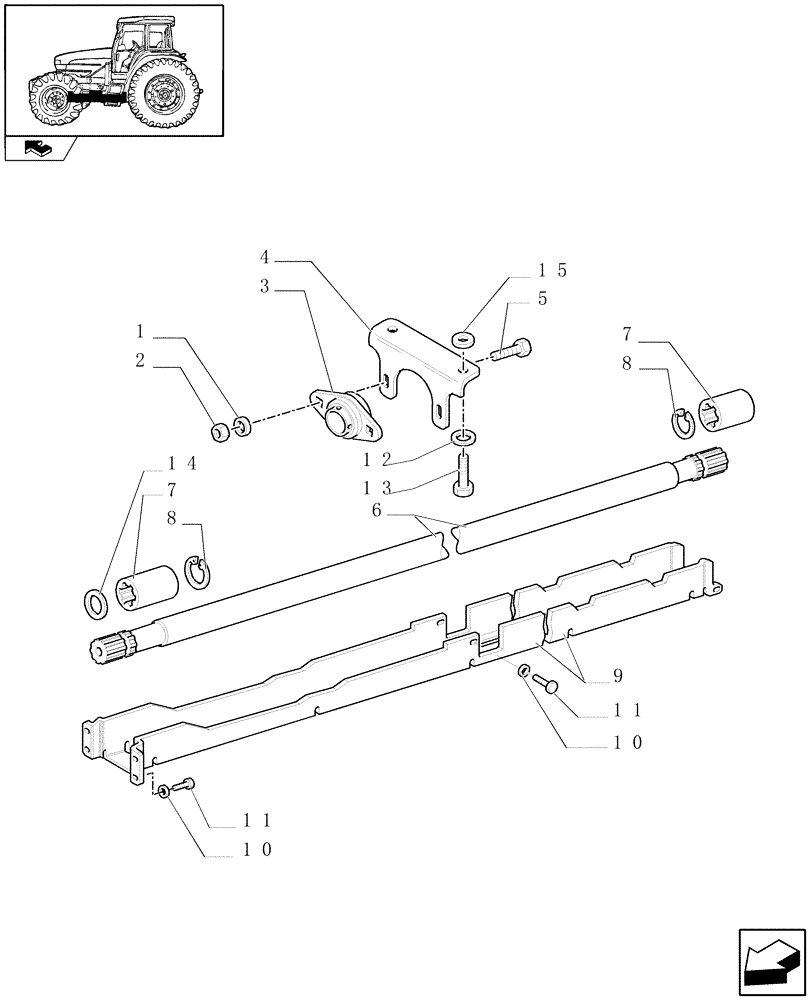

Запчасти Case IH FARMALL 105U (1.38.5) - PROPELLER SHAFT (4WD) AND GUARD (04) - FRONT AXLE & STEERING

1

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

2

12164714

NUT,M10 x 1.25, Cl 8

2шт.

3

5167098

BEARING ASSY,30mm ID

1шт.

4

5178213

SUPPORT

1шт.

5

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

87552665

SHAFT

1шт.

7

5199243

SPLINED COUPLING

2шт.

8

11067776

SNAP RING,M29, Ext

2шт.

9

87534295

SHIELD

1шт.

10

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

6шт.

11

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

12

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

13

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

14

5158051

SHIM,29.6mm ID x 40mm OD x 1.5mm Thk

1шт.

14

5158052

SHIM,29.6mm ID x 40mm OD x 1.9mm Thk

1шт.

14

4997301

SHIM,29mm ID x 40mm OD x 2.2mm Thk

1шт.

14

4997302

SHIM,29mm ID x 40mm OD x 2.5mm Thk

1шт.

14

4997303

SHIM,29mm ID x 40mm OD x 2.8mm Thk

1шт.

14

4997304

SHIM,29.6mm ID x 40mm OD x 3mm Thk

1шт.

14

4997305

SHIM,29.6mm ID x 40mm OD x 3.3mm Thk

1шт.

14

4997306

SHIM,29.6mm ID x 40mm OD x 3.7mm Thk

1шт.

14

4997307

SHIM,29.6mm ID x 40mm OD x 4mm Thk

1шт.

14

4997308

SHIM,29.6mm ID x 40mm OD x 4.3mm Thk

1шт.

15

5165001

SPACER,15mm ID x 30mm OD x 8mm L

2шт.
