Запчасти Case IH FARMALL 105U (1.33.0) - IDLER CASE & COVERS - 4WD (04) - FRONT AXLE & STEERING

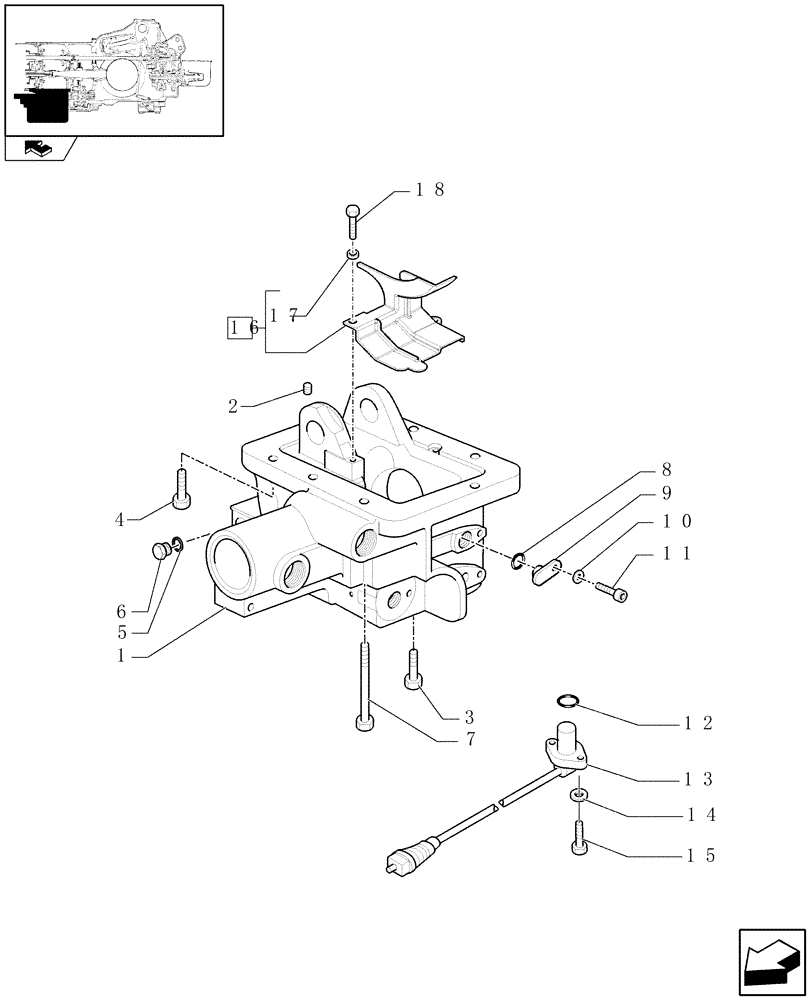

Схема запчастей Case IH FARMALL 105U - (1.33.0) - IDLER CASE & COVERS - 4WD (04) - FRONT AXLE & STEERING
8
home
11
10
16
3
17
5
2
15
12
9
18
6
4
13
7
1
14

Артикул

Название

Примечание

Количество

1

84178871

BOX

1шт.

2

10839810

DOWEL,12mm OD x 18mm L

M12 x 18

2шт.

3

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

4

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

7

15541721

SCREW,Hex, M12 x 1.25 x 110mm, Cl 8.8

1шт.

7

15542021

SCREW,Hex, M12 x 1.25 x 140mm, Cl 8.8

1шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

9

5164036

PLUG

1шт.

10

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

11

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

12

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

13

87564776

SENSOR

1шт.

14

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

15

10977711

BOLT,Hex, M5 x 14mm, Cl 5.8, Full Thd

2шт.

16

84275971

SHIELD

, Start Serial: D6771

1шт.

17

84275977

BUSHING

, Start Serial: D6771

2шт.

18

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

, Start Serial: D6771

2шт.

Выбрано товаров: 19
