Запчасти Case IH FARMALL 105U (1.32.6/01) - 2WD REAR MECHANICAL DIFFERENTIAL LOCK FOR MECHANICAL TRANS. - RODS & FORKS (VAR.339380) (03) - TRANSMISSION

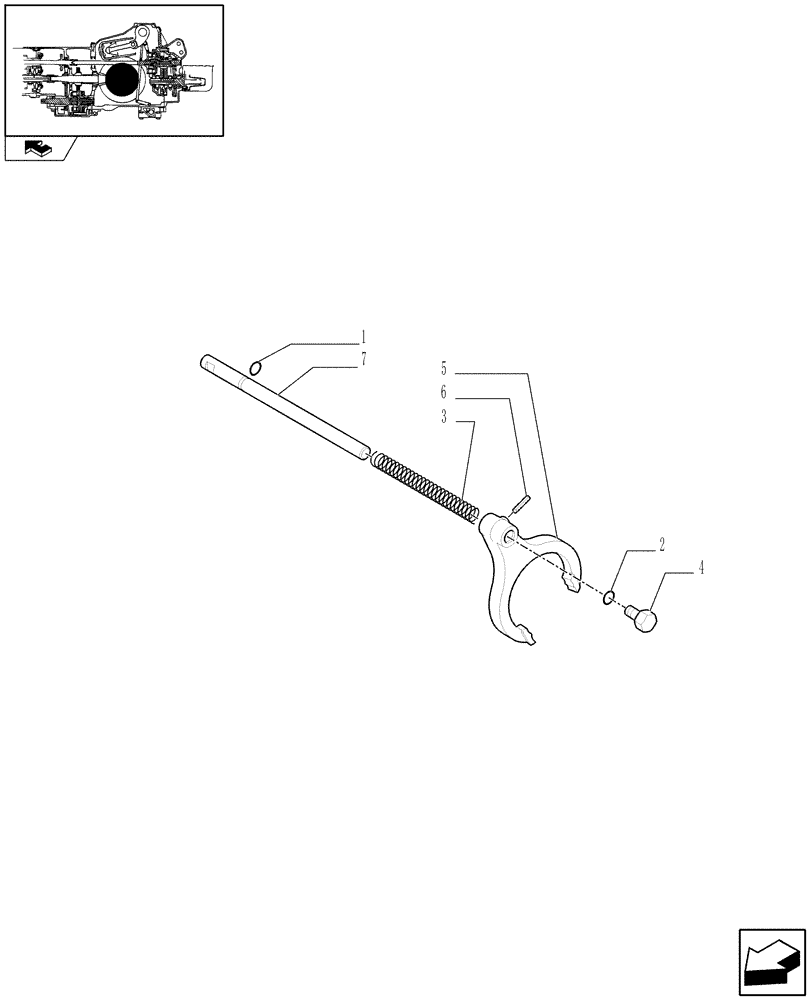

Схема запчастей Case IH FARMALL 105U - (1.32.6/01) - 2WD REAR MECHANICAL DIFFERENTIAL LOCK FOR MECHANICAL TRANS. - RODS & FORKS (VAR.339380) (03) - TRANSMISSION
1
4
3
7
2
5
6
home

Артикул

Название

Примечание

Количество

1

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

2

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

4WD

1шт.

3

5114581

SPRING,27mm OD x 220mm

1шт.

4

14329101

PLUG,M30, Tapered

1шт.

5

5114583

YOKE

1шт.

6

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

1шт.

7

5162895

SHAFT

2WD

1шт.

Выбрано товаров: 7
