Запчасти Case IH FARMALL 105U (1.32.4[03]) - DIFFERENTIAL GEARS FOR HD REAR AXLE - PARTS (03) - TRANSMISSION

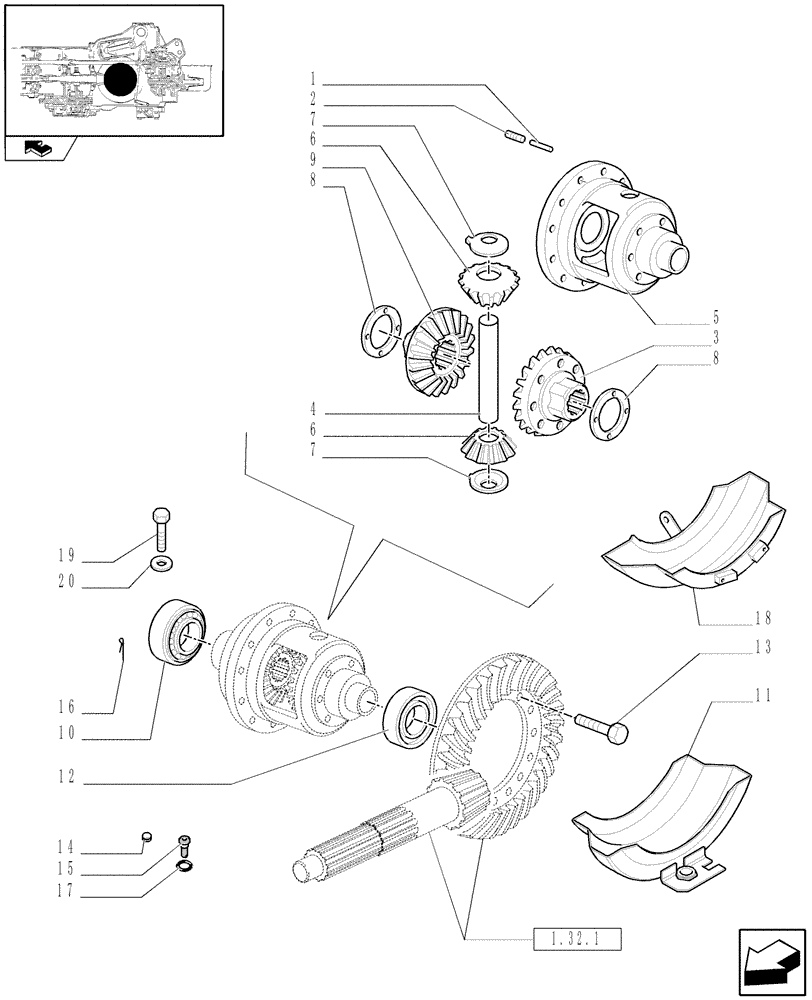

Схема запчастей Case IH FARMALL 105U - (1.32.4[03]) - DIFFERENTIAL GEARS FOR HD REAR AXLE - PARTS (03) - TRANSMISSION
1.32.1
16
17
6
6
14
20
7
2
19
8
18
3
1
home
12
13
4
15
7
5
8
10
9
11

Артикул

Название

Примечание

Количество

1

5173242

ROLL PIN,6.5mm OD x 61mm L

61.5 x 6.5

1шт.

2

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

3

4993576

PLANETARY GEAR

LH

1шт.

4

47135873

PIN,29.96mm OD x 182mm L

1шт.

5

87331267

BOX

1шт.

6

4993578

IDLER PINION

2шт.

7

4993654

THRUST WASHER,30mm ID x 61mm OD x 1.5mm Thk

2шт.

8

5144799

THRUST WASHER,60mm ID x 80mm OD x 1.4mm Thk

1шт.

8

4993652

THRUST WASHER,1.5mm Thk

1шт.

8

4993653

THRUST WASHER,60mm ID x 80mm OD x 1.6mm Thk

1шт.

8

5138269

THRUST WASHER,60mm ID x 80mm OD x 1.7mm Thk

1шт.

8

5144800

THRUST WASHER,60mm ID x 80mm OD x 1.8mm Thk

1шт.

8

5168814

THRUST WASHER,60mm ID x 80mm OD x 1.9mm Thk

1шт.

8

5168815

THRUST WASHER,60mm ID x 80mm OD x 2mm Thk

1шт.

9

4993577

PLANETARY GEAR

RH

1шт.

10

87331315

TAPERED BEARING,75mm ID x 115mm OD x 25mm W

1шт.

11

87566527

GUARD

ASSY, Serial Range: -C6076

1шт.

12

87331262

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

1шт.

13

14274731

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9

12шт.

14

14328501

PLUG,M16, Tapered

, Serial Range: -C6076

1шт.

15

87588834

PLUG

M18 x 1.5, Serial Range: -Z8JL10652

1шт.

15

87724922

PLUG

M22 x 1.5, Serial Range: Z8JL10653-C6076

1шт.

16

10802801

COTTER PIN,M2.5 x 25

, Serial Range: -C6076

1шт.

17

221964

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

, Serial Range: -Z8JL10652

1шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

, Serial Range: Z8JL10653-C6076

1шт.

18

87498297

SHIELD

, Start Serial: D6076

1шт.

19

14306921

HEX SOC SCREW,M8 x 50mm, Cl 8.8

, Start Serial: D6076

2шт.

19

84121742

SCREW,Hex, M10 x 1.25 x 120mm, Cl 5.8

, Start Serial: D6076

1шт.

19

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

, Start Serial: D6076

1шт.

20

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

, Start Serial: D6076

1шт.

20

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

, Start Serial: D6076

1шт.

Выбрано товаров: 31
