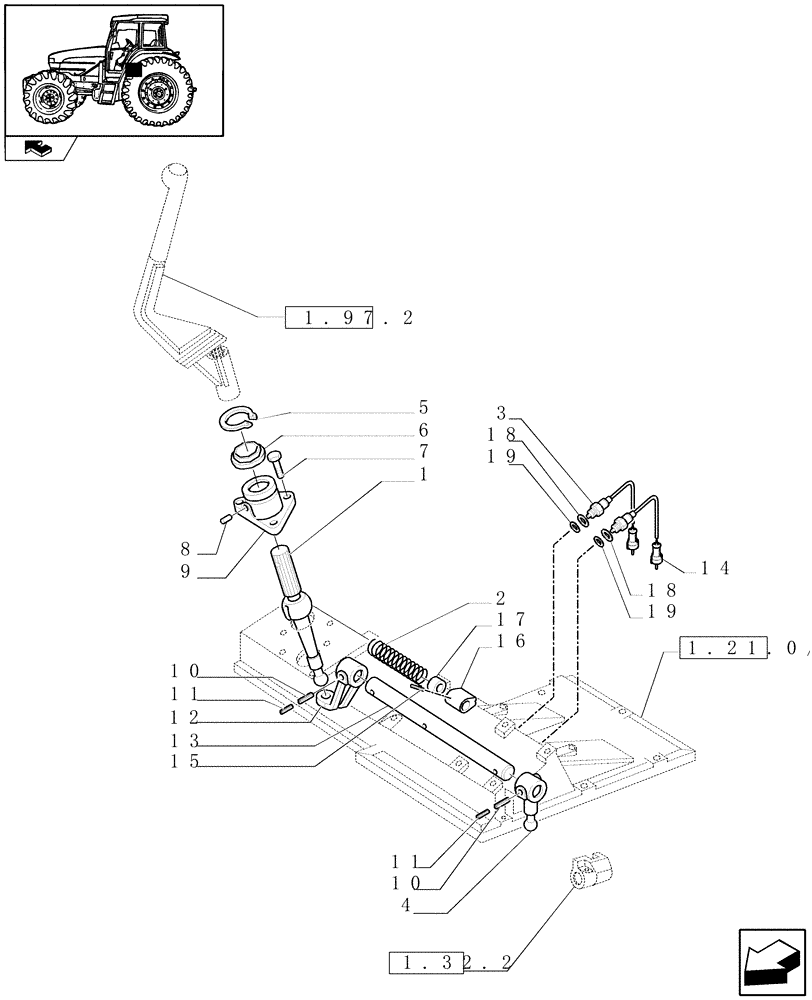

Запчасти Case IH FARMALL 105U (1.32.2/02) - 20X20 POWER SHUTTLE TRANSMISSION WITH CREEPER - RANGE GEARSHIFT MECHANISM - LEVERS AND TIE-RODS (VAR.330299-331299-332299-333299) (03) - TRANSMISSION

1

5127966

LEVER

1шт.

2

5127962

SPRING

1шт.

3

87585980

SWITCH

Green, Range detection

1шт.

4

5127970

LEVER

1шт.

5

11059976

SNAP RING,M40, Int

1шт.

6

4984223

SEAL,23mm ID x 40.5mm OD x 9.5mm Thk

1шт.

7

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

8

5125535

DOWEL

2шт.

9

5127967

SUPPORT

1шт.

10

14607270

LOCK PIN,M8 x 40, Slotted

2шт.

11

14601670

LOCK PIN,M5 x 40, Slotted

2шт.

12

5127971

LEVER

1шт.

13

5127969

SHIFT RAIL

1шт.

14

87585979

SWITCH

Grey, Range detection

1шт.

15

13907770

ROLL PIN,M5 x 32, Coiled

1шт.

16

5197222

BUSHING

1шт.

17

13604211

SPACER,6.5mm ID x 15mm OD x 15mm L

1шт.

18

10279760

SEALING WASHER,14.2mm ID x 20mm OD x 0.5mm Thk

1шт.

19

10282460

SEALING WASHER,M14.2 x 20 x 1, Copper

1шт.
