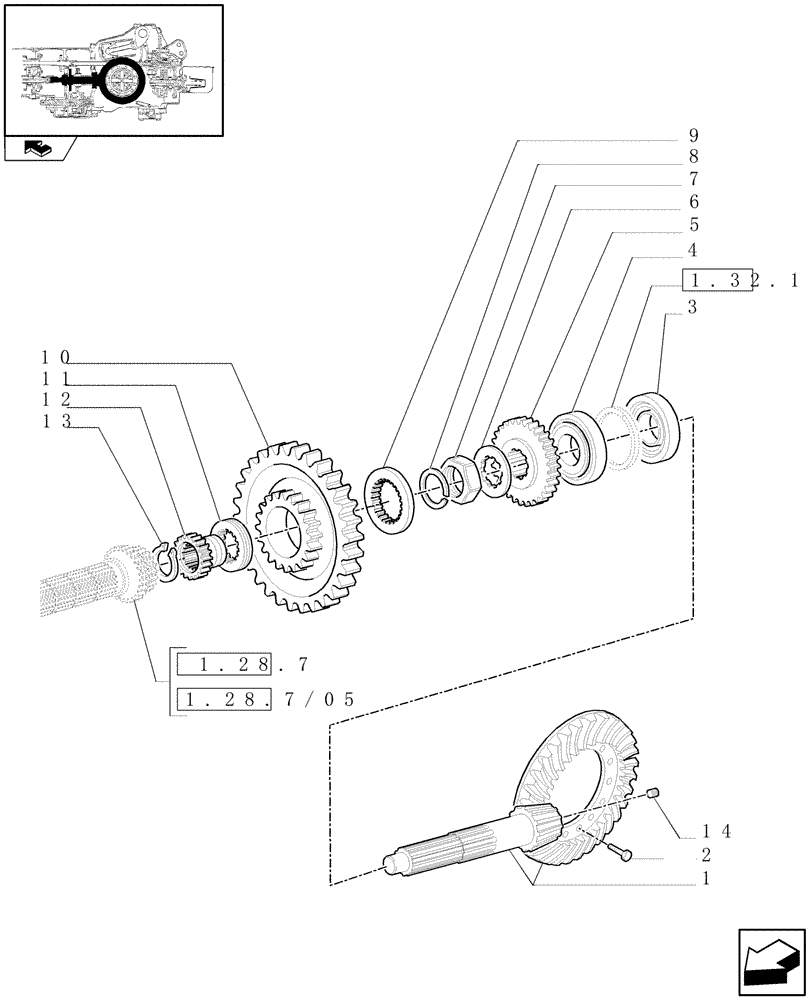

Запчасти Case IH FARMALL 105U (1.32.1/01[02]) - CENTRAL REDUCTION FOR HD REAR AXLE - SLOW/FAST RANGE GEARS AND BEVEL GEARS (03) - TRANSMISSION

1

87385870

BEVEL GEAR

Ring & Pinion, R=10/44

1шт.

JXU 105 / 105U

1шт.

1

84191185

BEVEL GEAR

1шт.

JXU 115

1шт.

2

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

3

47124626

TAPERED BEARING,45mm ID x 106mm OD x 38.25mm W

1шт.

4

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

1шт.

5

87388608

DRIVEN GEAR

1шт.

JXU 105 / 105U

1шт.

5

84191099

GEAR

1шт.

JXU 115

1шт.

6

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

7

5117744

NUT

1шт.

8

5127762

HALF-RING

2шт.

9

5160748

SPACER

1шт.

10

5160747

GEAR

1шт.

11

5125010

SLEEVE,23T

1шт.

12

5160749

SPLINED COUPLING,10T Internal / 23T External

1шт.

13

11068976

SNAP RING,M42, Ext

1шт.

14

5189378

PLUG,M10 x 1.5 x 12mm, Cl 4.8

1шт.

JXU 115

1шт.
