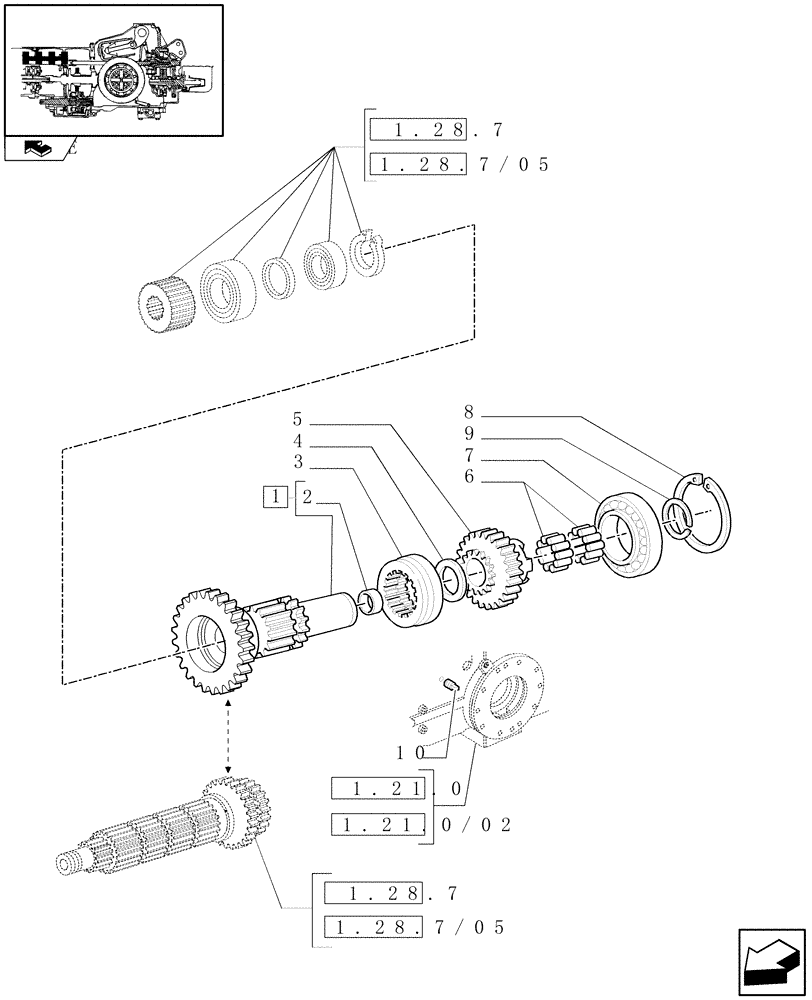

Запчасти Case IH FARMALL 105U (1.32.1/01[01]) - CENTRAL REDUCTION FOR HD REAR AXLE - MEDIUM RANGE GEARS (03) - TRANSMISSION

1

5176751

MAIN SHAFT

1шт.

JXU 105 / 105U

1шт.

1

84244474

HALF SHAFT

1шт.

JXU 115

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25 x 28.53 x 18

1шт.

3

5125880

SPLINED COUPLING,17T

1шт.

4

5182075

WASHER,42.13mm ID x 56mm OD x 4mm Thk

1шт.

5

5131169

GEAR

1шт.

JXU 105 / 105U

1шт.

5

84191097

GEAR

1шт.

JXU 115

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

42 x 47 x 27

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

1шт.

8

11075476

SNAP RING,M110, Int

1шт.

9

5117076

CIRCLIP,M47, Ext

D = 47

1шт.

10

14323914

PLUG,M10 x 1.25 x 14mm L

M10

2шт.
