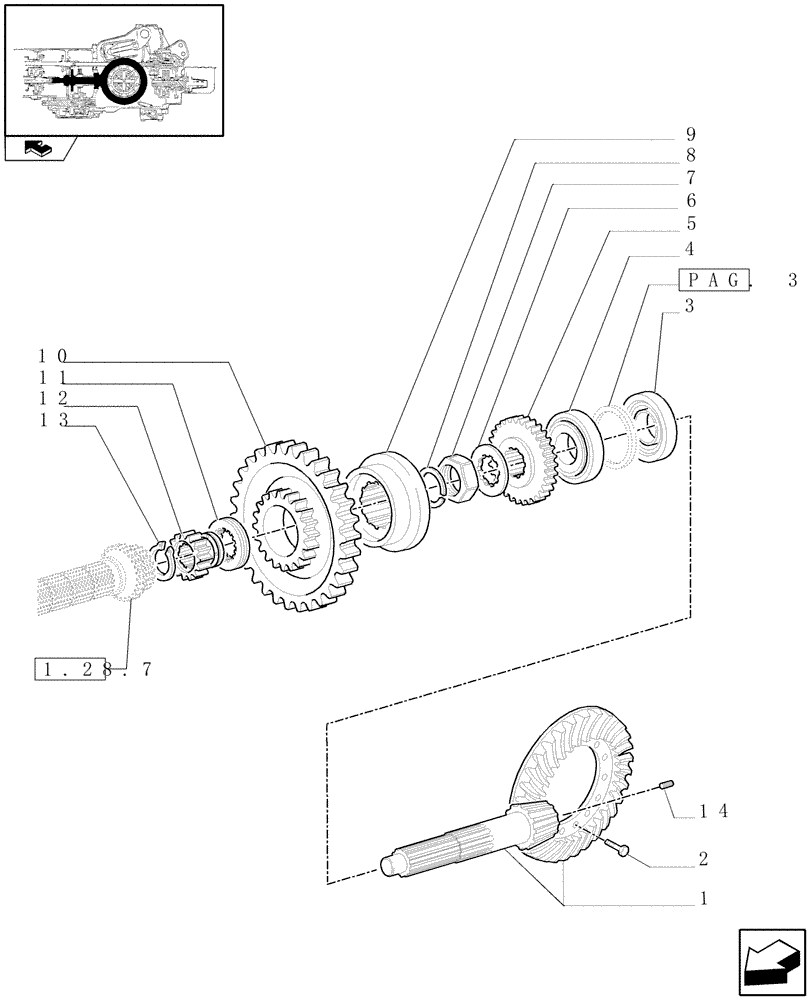

Запчасти Case IH FARMALL 105U (1.32.1[02]) - CENTRAL REDUCTION - SLOW/FAST RANGE GEARS AND BEVEL GEARS (03) - TRANSMISSION

1

87385863

BEVEL GEAR

Ring & Pinion, R=10/44

1шт.

2

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

3

47124626

TAPERED BEARING,45mm ID x 106mm OD x 38.25mm W

1шт.

4

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

1шт.

5

87388608

DRIVEN GEAR

1шт.

6

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

7

5117744

NUT

1шт.

8

5127762

HALF-RING

2шт.

9

5131681

SPACER

1шт.

10

5131680

DRIVEN GEAR

1шт.

11

5125010

SLEEVE,23T

1шт.

12

5125009

SPLINED COUPLING,10T Internal / 23T External

1шт.

13

11068976

SNAP RING,M42, Ext

1шт.

14

5189378

PLUG,M10 x 1.5 x 12mm, Cl 4.8

1шт.

VAR.330114-331114-332114-330279-331279-332279-330299-331299-332299-333299, Power Shuttle Transmission

1шт.
