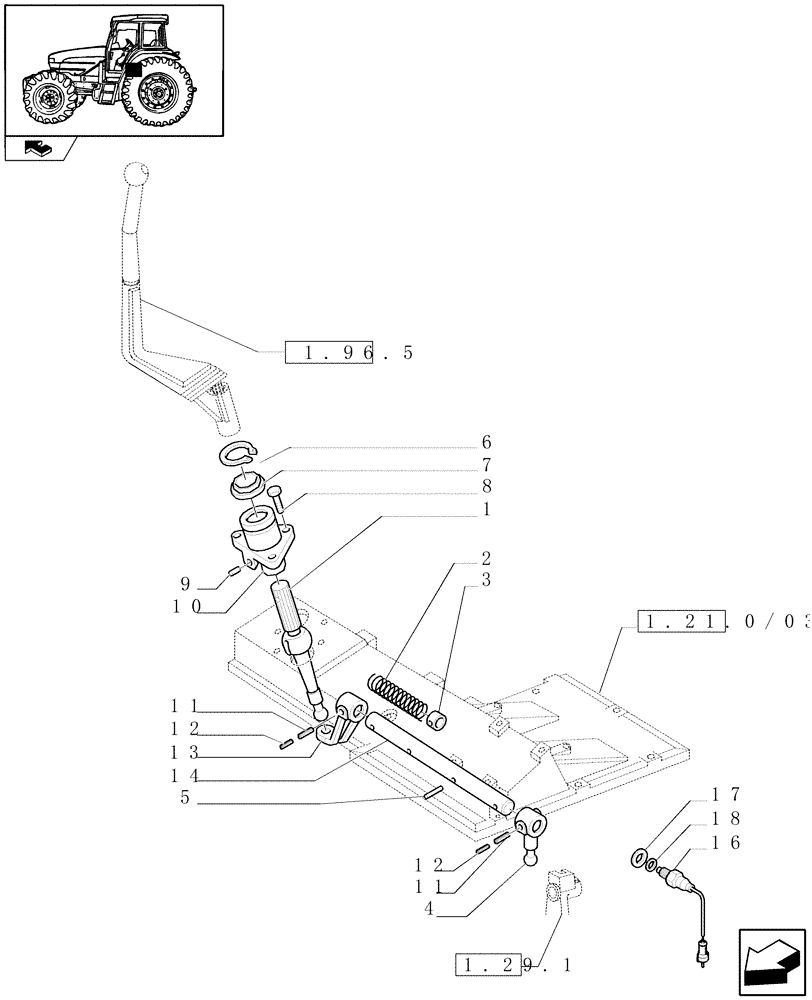

Запчасти Case IH FARMALL 105U (1.29.1/05) - 20X20 POWER SHUTTLE TRANSMISSION WITH CREEPER - SPEED GEARSHIFT MECHANISM - LEVERS AND TIE-RODS (VAR.330299-331299-332299-333299) (03) - TRANSMISSION

1

47134074

LEVER

1шт.

2

5127962

SPRING

1шт.

3

5132334

SPACER,22.1mm ID x 30mm OD x 11mm L

1шт.

4

5127965

LEVER

for Shifter Fork

1шт.

5

13907770

ROLL PIN,M5 x 32, Coiled

1шт.

6

11059976

SNAP RING,M40, Int

1шт.

7

4984223

SEAL,23mm ID x 40.5mm OD x 9.5mm Thk

1шт.

8

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

9

5125535

DOWEL

2шт.

10

5176076

SUPPORT

1шт.

11

14607270

LOCK PIN,M8 x 40, Slotted

2шт.

12

14601670

LOCK PIN,M5 x 40, Slotted

2шт.

13

5175998

LEVER

1шт.

14

5182015

SHIFT RAIL

1шт.

15

5186499

LEVER

for Sensor

1шт.

16

87585978

SWITCH

Black, Speed detection

1шт.

17

10279760

SEALING WASHER,14.2mm ID x 20mm OD x 0.5mm Thk

1шт.

18

10282460

SEALING WASHER,M14.2 x 20 x 1, Copper

1шт.
