Запчасти Case IH FARMALL 105U (1.29.1/01[01]) - 40KM/H 12X12 FOR HEAVY DUTY REAR TRANSMISSION - SPEED GEARSHIFT MECHANISM - RODS AND FORKS (03) - TRANSMISSION

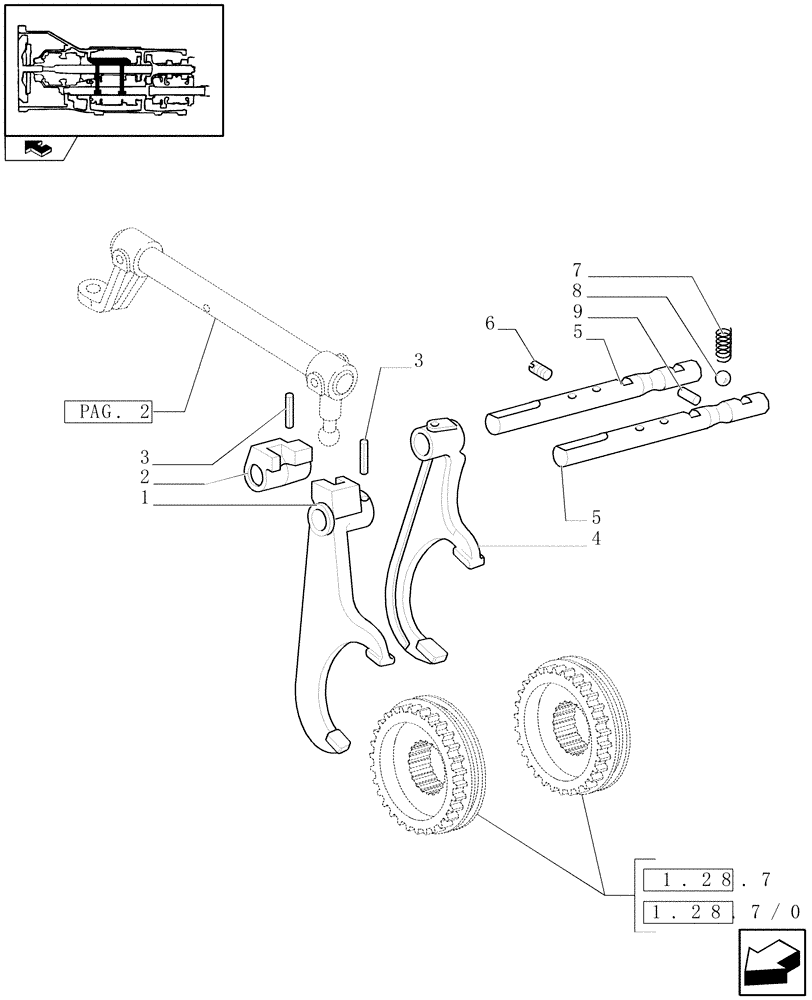

Схема запчастей Case IH FARMALL 105U - (1.29.1/01[01]) - 40KM/H 12X12 FOR HEAVY DUTY REAR TRANSMISSION - SPEED GEARSHIFT MECHANISM - RODS AND FORKS (03) - TRANSMISSION
1.28.7
1.28.7/05
4
2
8
3
6
home
.
5
1
g
3
5
9
a
7
p
2

Артикул

Название

Примечание

Количество

1

87330657

SHIFTER FORK

3rd/4th Speed

1шт.

2

5174201

DOG

1шт.

3

13907770

ROLL PIN,M5 x 32, Coiled

3шт.

4

5127387

SHIFTER FORK

1st/2nd Speed

1шт.

5

5172051

ROD

2шт.

6

10152314

PLUG

M12 x 1.25

1шт.

7

4994342

SPRING,8mm OD x 30mm OAL

2шт.

8

20063390

BALL,8.73mm OD

D=11/32"

2шт.

9

5110264

PAWL,8.5mm OD x 26.5mm L

1шт.

Выбрано товаров: 9
