(1.29.0/02[01]) - 20X20 POWER SHUTTLE TRANSMISSION WITH CREEPER - CREEPER GEARSHIFT MECHANISM - RODS AND FORKS (VAR.330299-331299-332299-333299)

Запчасти Case IH FARMALL 105U (1.29.0/02[01]) - 20X20 POWER SHUTTLE TRANSMISSION WITH CREEPER - CREEPER GEARSHIFT MECHANISM - RODS AND FORKS (VAR.330299-331299-332299-333299) (03) - TRANSMISSION

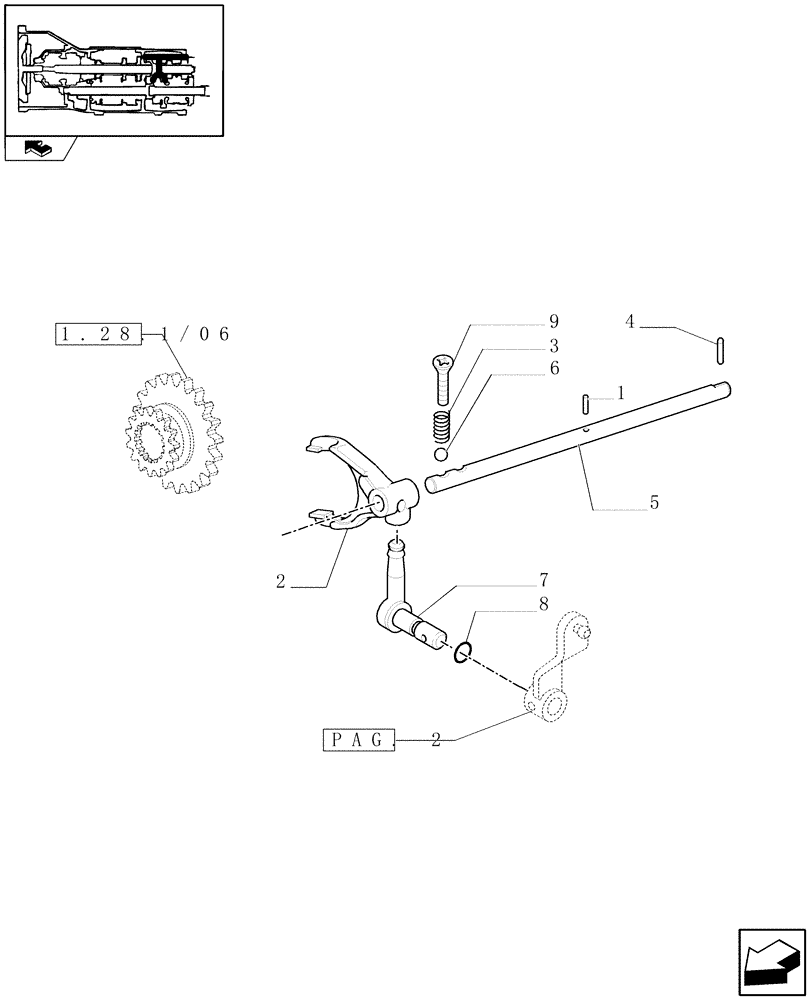

Схема запчастей Case IH FARMALL 105U - (1.29.0/02[01]) - 20X20 POWER SHUTTLE TRANSMISSION WITH CREEPER - CREEPER GEARSHIFT MECHANISM - RODS AND FORKS (VAR.330299-331299-332299-333299) (03) - TRANSMISSION
8
7
4
6
pag. 2
home
1.28.1/06
2
9
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13907670

ROLL PIN,M5 x 30, Coiled

1шт.

2

84161752

SHIFTER FORK

1шт.

3

4956546

SPRING,Cylindrical, 8.1mm OD x 38mm L

1шт.

4

5110264

PAWL,8.5mm OD x 26.5mm L

1шт.

5

84329994

ROD

1шт.

6

20063390

BALL,8.73mm OD

D=11/32''

1шт.

7

5161857

LEVER

1шт.

8

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

9

13305311

SCREW,Pozidriv Flat Hd, Csk, M10 x 20mm, Cl 5.8

1шт.

Выбрано товаров: 9
