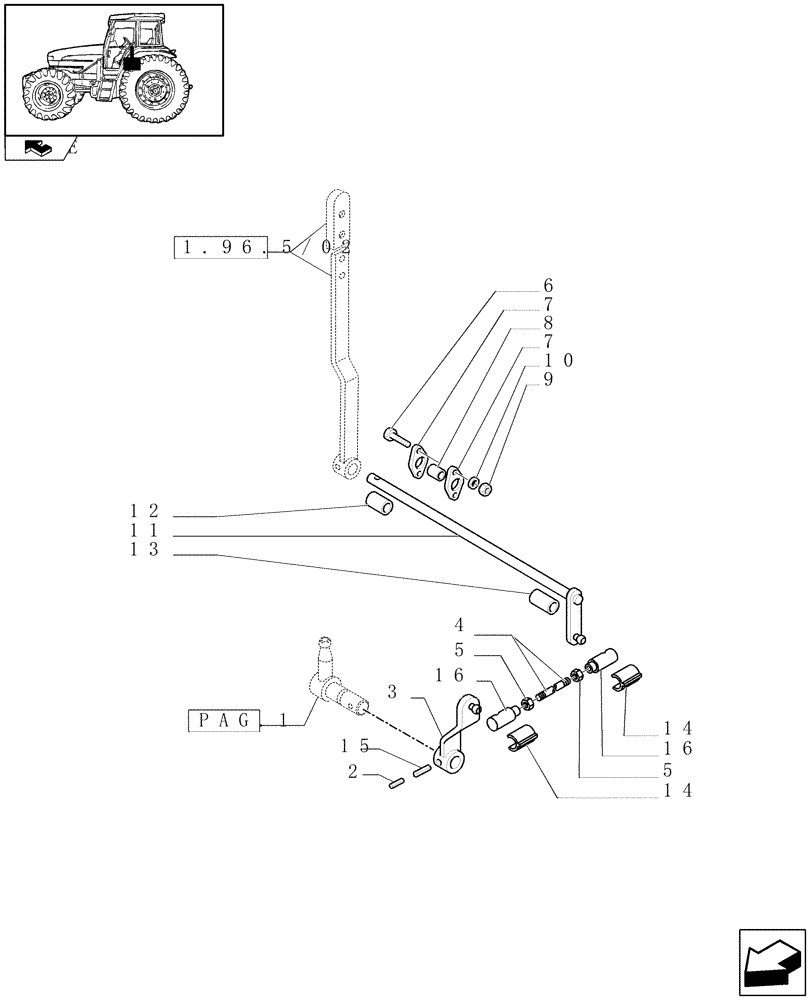

Запчасти Case IH FARMALL 105U (1.29.0/01[02]) - 20X12 TRANSMISSION - CREEPER GEARSHIFT MECHANISM - LEVERS AND TIE-RODS (VAR.330113-331113) (03) - TRANSMISSION

1

5147701

SPRING CLIP

2шт.

2

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

3

5174569

LEVER

1шт.

4

5174573

TIE-ROD

1шт.

5

10791014

NUT,M10 x 1.25, Cl 04

2шт.

6

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

4шт.

7

5156494

FLANGE

4шт.

8

5144332

BUSHING,14mm ID x 25mm OD x 16mm L

2шт.

9

15896214

NUT,M6, Cl 8

4шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

11

5174566

SHAFT

1шт.

12

5166765

SPACER,14mm ID x 22mm OD x 49.5mm L

14 x 22 x 53.5, RH

1шт.

13

5166764

SPACER,14mm ID x 22mm OD x 42.5mm L

14 x 22 x 42.5, LH

1шт.

14

10125674

CLAMP,15mm

2шт.

15

14601670

LOCK PIN,M5 x 40, Slotted

1шт.

16

10124611

BALL JOINT HEAD

2шт.
