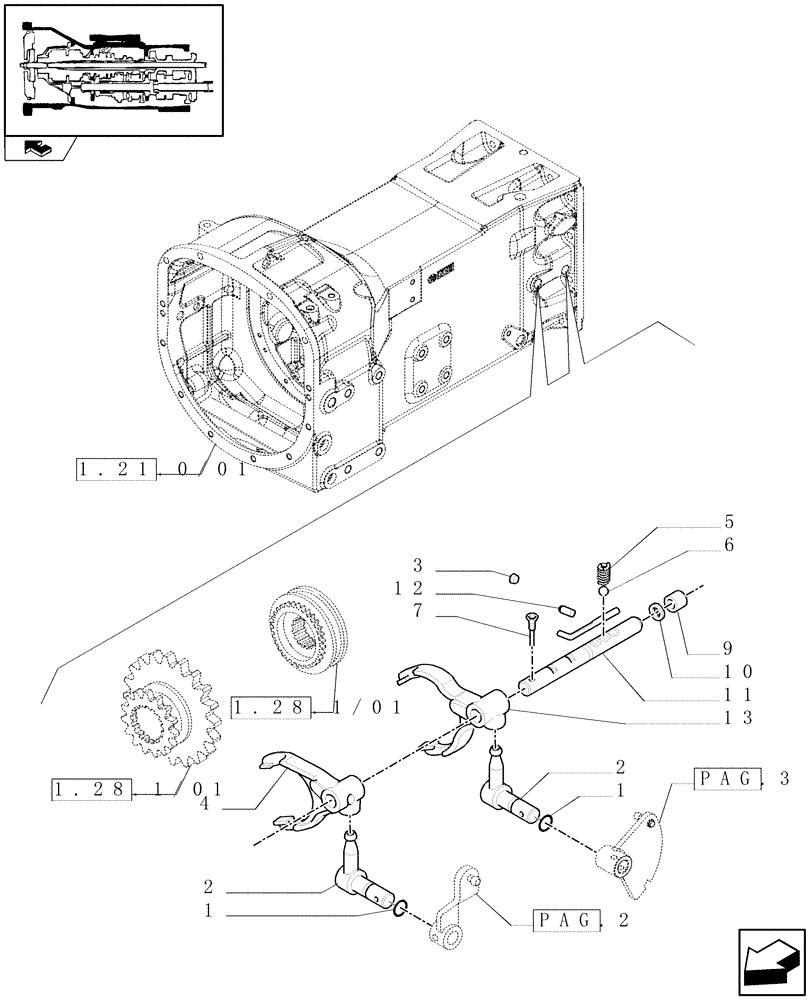

Запчасти Case IH FARMALL 105U (1.29.0/01[01]) - 20X12 TRANSMISSION - CREEPER AND REVERSER GEARSHIFT MECHANISM - RODS AND FORKS (VAR.330113-331113) (03) - TRANSMISSION

1

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

2

5161857

LEVER

2шт.

3

87645633

PLUG

D=9

1шт.

4

5175976

SHIFTER FORK

Creeper

1шт.

5

4994342

SPRING,8mm OD x 30mm OAL

2шт.

6

20063390

BALL,8.73mm OD

D = 11/32"

2шт.

7

5161858

SCREW,FLAT, M10 x 1.25 x 80mm, Cl 8.8

M10 x 1.25 x 80

1шт.

8

5163628

IDLER LEVER

1шт.

9

5161859

SPACER,16.2mm ID x 20mm OD x 13mm L

16.2 x 20 x 13

1шт.

10

5161860

O-RING,14.7mm ID x 16mm OD x 1.5mm

D=16

1шт.

11

5163480

SHIFT RAIL

1шт.

12

5110264

PAWL,8.5mm OD x 26.5mm L

1шт.

13

5163627

SHIFTER FORK

Reverser

1шт.
