1
87343463
CONTROL VALVE
1шт.
2
5157119
SPRING,11.5mm x 127mm
1шт.
3
5161047
PRESSURE SWITCH
3 Bar, Serial Range: -C6395
2шт.
3
87494632
PRESSURE SWITCH,M12 x 1.5
3 Bar, Start Serial: D6395
2шт.
4
10296160
SEALING WASHER,M12.2 x 18 x 1, Copper
2шт.
5
14457280
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
3шт.
6
5170395
BY-PASS VALVE
1шт.
7
5170396
DISC,6mm ID
1шт.
8
5195043
ACCUMULATOR,0.75L
1шт.
9
5178778
SPACER,11mm ID x 15mm OD x 15mm L
11 x 15 x 15
3шт.
10
5135738
O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro
1шт.
11
5186462
HYD CONNECTOR,M18 x 1.5 x 43.5mm
1шт.
12
14438085
O-RING,19.3mm ID x 2.4mm
3шт.
13
5182008
HYD CONNECTOR
1шт.
14
5181597
TEE
1шт.
15
14437985
O-RING,15.3mm ID x 2.4mm
1шт.
16
5185412
PLUG,11mm ID x 15mm OD x 15mm L
1шт.
17
47137762
VALVE,12.5mm ID x 16mm OD x 47mm Thk
1шт.
18
87343484
BRACKET
2шт.
19
14437785
O-RING,11.3mm ID x 2.4mm
4шт.
20
5185423
COUPLING
Diagnostic
4шт.
21
5185424
DUST CAP,11.5mm ID x 81.5 L, Black
4шт.
22
47134949
HYD CONNECTOR
1шт.
23
14457180
O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro
1шт.
24
12602474
WAVE WASHER,Wave, M8.3
2шт.
25
16043624
SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
2шт.
26
5188811
PIN,4mm OD x 8mm L
1шт.
27
10269504
PLUG,M14 x 1.5
M14 x 1.5
2шт.
28
82028133
SENSOR,3/8"-18
Trans. Temp.
1шт.
29
10269150
PLUG,M6 x 1 x 60mm L
M6 x 1
1шт.
30
5120761
SPRING,7.7mm OD x 20.5mm L
1шт.
31
10119411
PLUG,M18 x 1.5 x 12.00mm
1шт.
32
14437985
O-RING,15.3mm ID x 2.4mm
1шт.
33
11057476
SNAP RING,M16, Int
1шт.
34
87577678
SOLENOID
4шт.
35
12601274
WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC
4шт.
36
13550124
WASHER,5.15mm ID x 11mm OD x 1mm Thk
5 x 11
2шт.
37
14305124
HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd
4шт.
38
87378726
HYD CONNECTOR
1шт.
VAR.332632
1шт.

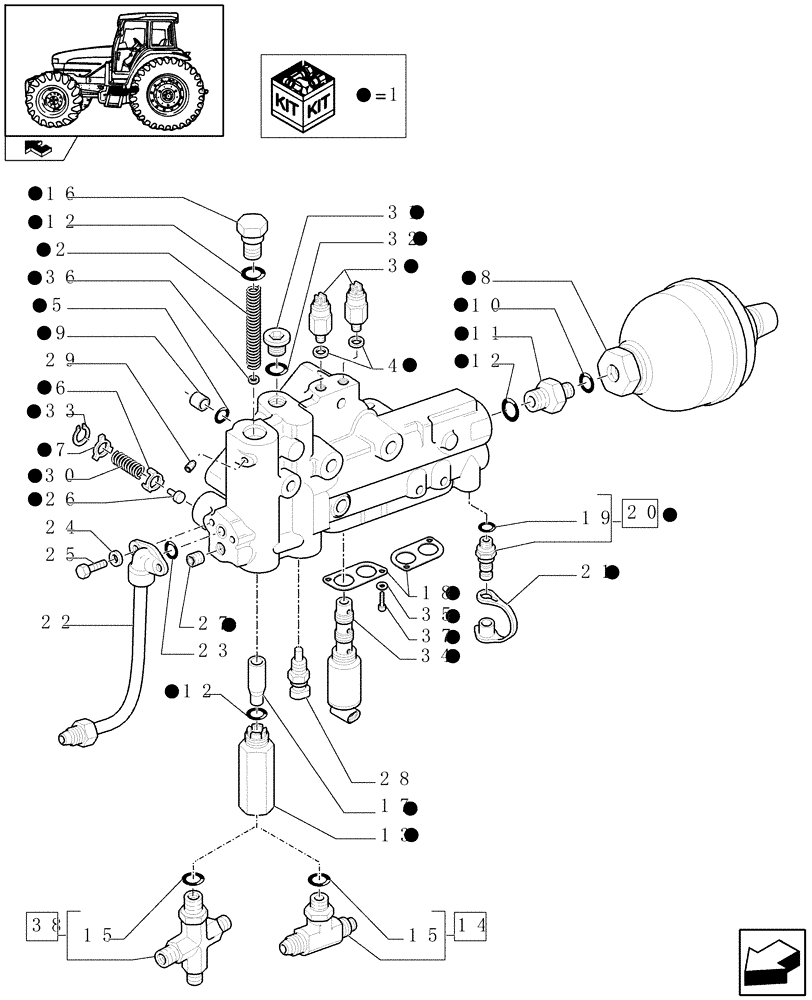

![Схема запчастей Case IH FARMALL 105U - (1.27.3/01[01]) - 24X24 HI-LO POWER SHUTTLE TRANSMISSION - POWER SHUTTLE CONTROL VALVE (VAR.330279-331279-332279) (03) - TRANSMISSION](https://partsell.ru/storage/images/caseih/607873.png)
