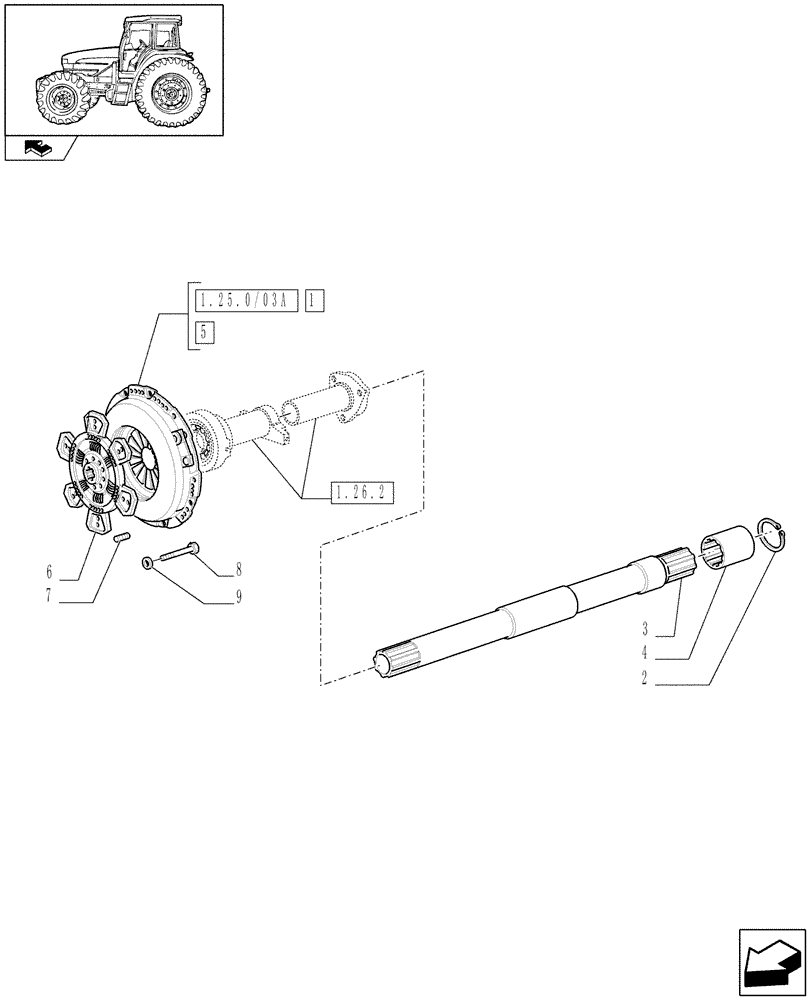

Запчасти Case IH FARMALL 105U (1.25.0/03) - HYDRAULIC PTO - CLUTCH AND PTO SHAFTS (VAR.330727-334727-330729-334729-330728-332728-330819-334819) (03) - TRANSMISSION

1

5189823

CLUTCH

JXU 75, JXU 85 / 85U

1шт.

1

5189823R

REMAN-CLUTCH PLATE

Reman for New PN 5189823

1шт.

1

5189823C

CORE-CLUTCH PLATE

Return Number

1шт.

2

11067276

SNAP RING,M24, Ext

1шт.

3

5183316

SHAFT

1шт.

4

5183317

SPLINED COUPLING,10T

1шт.

5

87575337

CLUTCH

JXU 95 / 95U, JXU 105 / 105U

1шт.

6

5189825

CLUTCH PLATE

JXU 75, JXU 85 / 85U

1шт.

6

5189825R

REMAN-CLUTCH PLATE

Reman for New PN 5189825

1шт.

6

5189825C

CORE-CLUTCH PLATE

Return Number

1шт.

6

87575335

CLUTCH PLATE

JXU 95 / 95U, JXU 105 / 105U

1шт.

7

4745893

DOWEL

2шт.

8

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

9

11198071

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

8шт.
