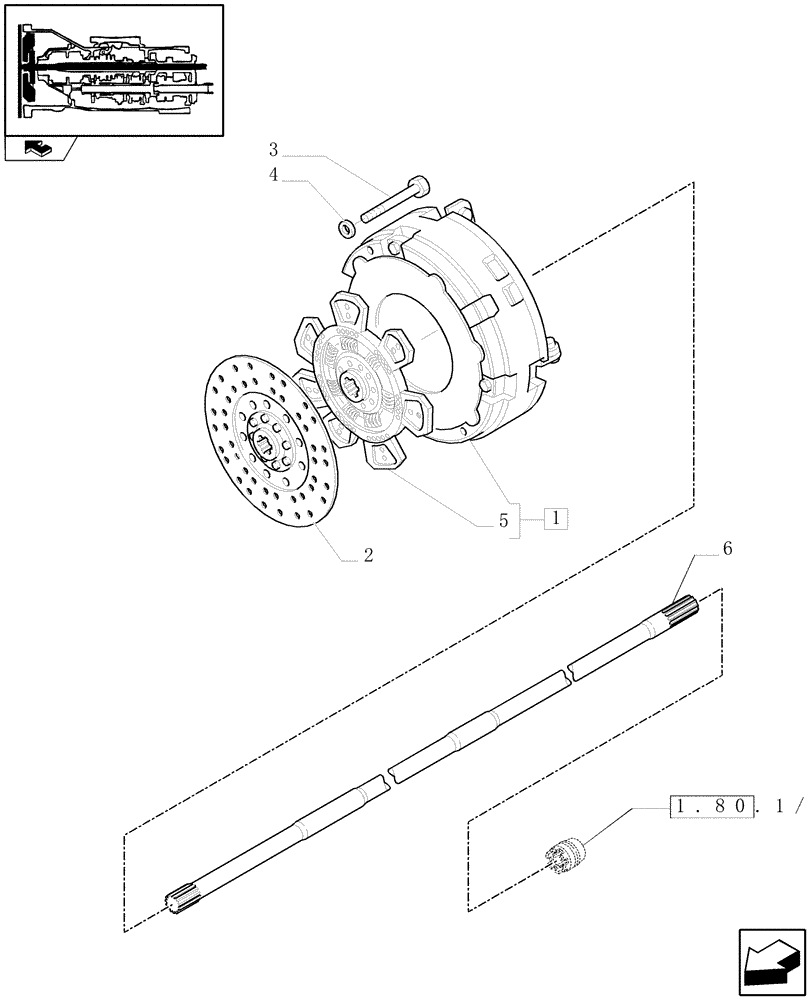

Запчасти Case IH FARMALL 105U (1.25.0/01) - CLUTCH AND PTO SHAFT FOR 20X12 TRANSMISSION - L/CAB (03) - TRANSMISSION

1

47126706

CLUTCH

ASSY

1шт.

1

87716719R

REMAN-CLUTCH PLATE

1шт.

1

87716719C

CORE-CLUTCH PLATE

Return Number

1шт.

2

5167937

CLUTCH PLATE,310mm OD

PTO

1шт.

2

5167937R

REMAN-CLUTCH PLATE

PTO

1шт.

2

5167937C

CORE-CLUTCH PLATE

Return Number

1шт.

3

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

6шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.

5

47126703

CLUTCH PLATE

1шт.

5

87716700R

REMAN-CLUTCH DISC

1шт.

5

87716700C

CORE-CLUTCH DISC

Return Number

1шт.

6

87339480

SHAFT

1шт.
