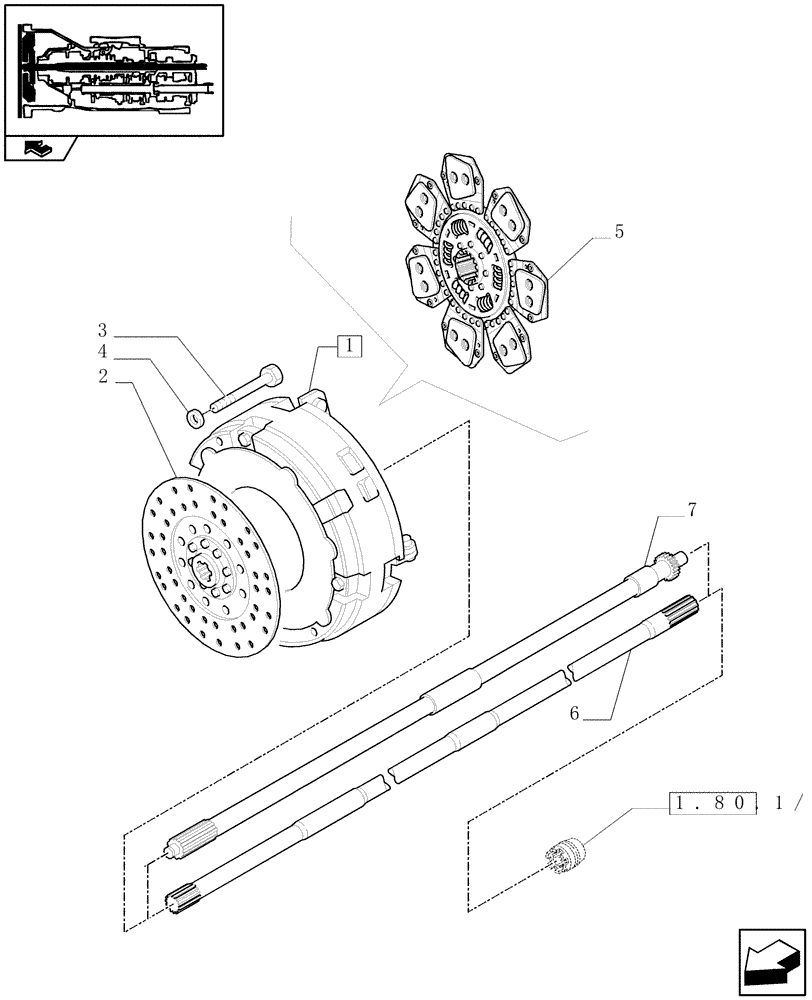

Запчасти Case IH FARMALL 105U (1.25.0[02]) - CLUTCH AND PTO SHAFT (03) - TRANSMISSION

1

87575333

CLUTCH

1шт.

1

87716719R

REMAN-CLUTCH PLATE

1шт.

1

87716719C

CORE-CLUTCH PLATE

Return Number

1шт.

2

5167937

CLUTCH PLATE,310mm OD

1шт.

2

5167937R

REMAN-CLUTCH PLATE

310mm OD

1шт.

2

5167937C

CORE-CLUTCH PLATE

Return Number

1шт.

3

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

6шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.

5

87575335

CLUTCH PLATE

1шт.

6

87339480

SHAFT

1шт.

7

5189504

PTO SHAFT

1шт.

VAR.330807-332807, Mechanical PTO with Ground Speed

1шт.
