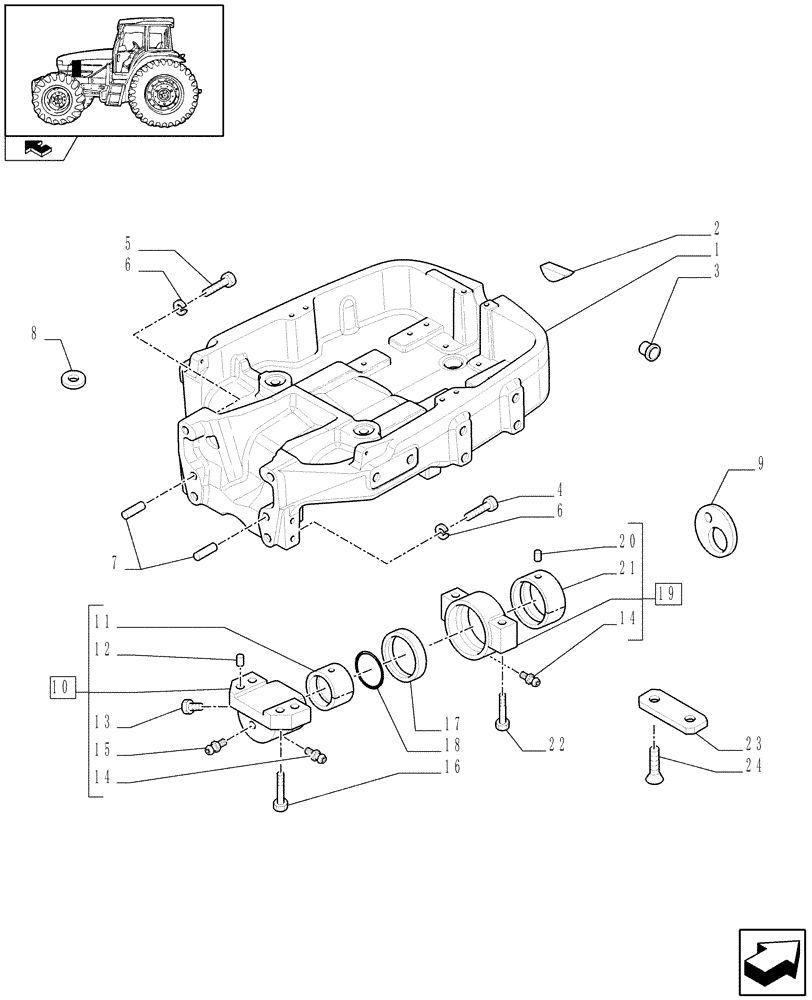

Запчасти Case IH FARMALL 105U (1.21.1) - AXLE FASTENING FRONT SUPPORT (03) - TRANSMISSION

1

87339715

SUPPORT

2WD

1шт.

1

87557582

SUPPORT

1шт.

2

87568237

PLUG

1шт.

3

5171790

PLUG,18mm, Black

D=18

16шт.

4

15989734

BOLT,Hex, M20 x 1.5 x 130mm, Cl 10.9

2шт.

5

15989534

SCREW,Hex, M20 x 1.5 x 120mm

M20 x 1.5 x 120

2шт.

6

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

D=20

4шт.

7

4668595

DOWEL,18mm OD x 22mm L

18 x 22

2шт.

8

47128135

SHIM,21mm ID x 40mm OD x 1.8mm Thk, Yellow

Yellow

2шт.

8

47128136

SHIM,21mm ID x 40mm OD x 2.0mm Thk, Red

Red

1шт.

8

47128137

SHIM,21mm ID x 40mm OD x 2.2mm Thk, Green

Green

1шт.

8

47128138

SHIM,21mm ID x 40mm OD x 2.4mm Thk, Blue

Blue

1шт.

8

47136468

SHIM,21mm ID x 40mm OD x 1.6mm Thk, Black

Black

1шт.

9

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

10

5140452

SUPPORT

1шт.

11

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

52 x 42

1шт.

12

10837710

DOWEL,M10 x 25

2шт.

13

13411117

VALVE PRESSURE RELIE,M10, Black

Grease

1шт.

14

13407214

LUBE NIPPLE,M10 x 1

1шт.

14

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

45°

2шт.

15

13407211

LUBE NIPPLE,M10 x 1

1шт.

16

14272034

LOCK BOLT,Hex, M18 x 1.5 x 65mm, Cl 10.9

2шт.

17

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

2шт.

18

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

19

47131328

SUPPORT

1шт.

20

10837810

DOWEL,M12 x 30.00mm

M12

2шт.

21

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

22

14272934

BOLT,Hex, M18 x 1.5 x 140mm, Cl 10.9

2шт.

23

87304410

SPACER

2шт.

VAR.330490-331491 Front Loader Brackets

1шт.

24

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

VAR.330490-331491 Front Loader Brackets

1шт.
