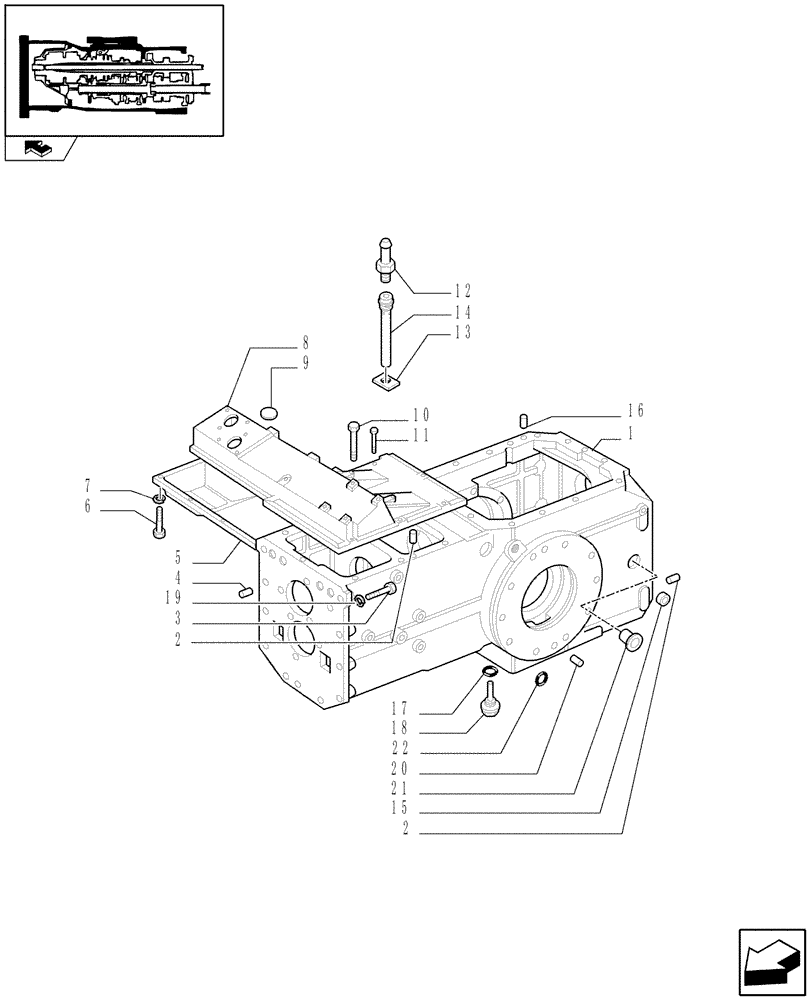

Запчасти Case IH FARMALL 105U (1.21.0/03[02]) - 20X20 POWER SHUTTLE TRANSMISSION WITH CREEPER - TRACTOR BODY (VAR.330299-331299-332299-33329) (03) - TRANSMISSION

1

87718475

TRANSMISSION HOUSING

, Serial Range: -C6853

1шт.

1

84313860

TRANSMISSION HOUSING

, Start Serial: D6853

1шт.

2

10839810

DOWEL,12mm OD x 18mm L

4шт.

3

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

, Serial Range: -C6853

12шт.

3

84311259

BOLT

, Start Serial: D6853

12шт.

4

10839910

DOWEL,15mm OD x 20mm L

2шт.

5

5173638

SHIELD

1шт.

6

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

8

47129842

COVER

1шт.

9

504344694

PLUG,M25, Tapered

2шт.

10

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

2шт.

11

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

6шт.

12

5157395

FITTING

1шт.

13

10262160

SEAL,M28.4 x 34 x 2, Copper

1шт.

14

5176843

TUBE

Breather

1шт.

15

14329101

PLUG,M30, Tapered

1шт.

16

5119529

DOWEL,15mm OD x 22mm L

2шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

18

87584549

PLUG

M22 x 1.5

1шт.

19

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

, Serial Range: -C6853

12шт.

19

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

, Start Serial: D6853

12шт.

20

5110200

DOWEL,12mm OD x 25mm L

M12 x 25

4шт.

21

5160960

PLUG,30mm

D = 30

2шт.

22

5103230

O-RING,2.62mm Thk x 11.91mm ID

2.62 x 11.91

2шт.
