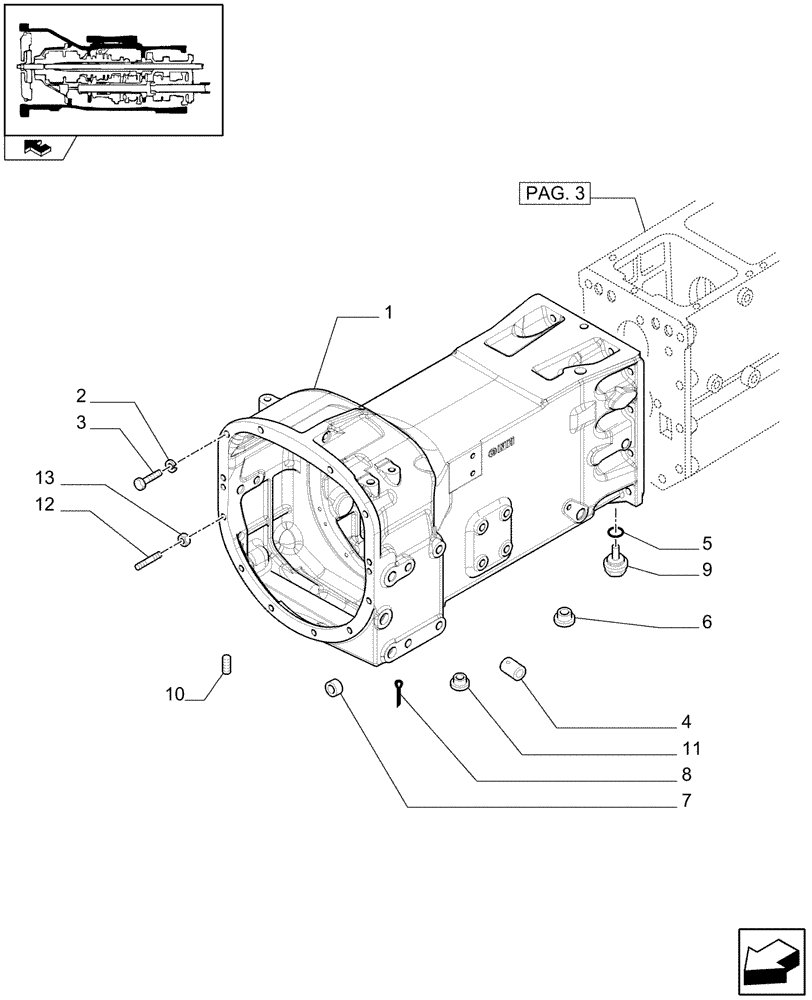

Запчасти Case IH FARMALL 105U (1.21.0[01]) - TRACTOR BODY (03) - TRANSMISSION

1

87368061

TRANSMISSION HOUSING

Clutch, Incl. 6, Serial Range: -C6853

1шт.

1

84317768

BOX

Clutch, Start Serial: D6853

1шт.

2

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

12шт.

3

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

1шт.

3

15540834

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

2шт.

4

5133142

BUSHING,24.05mm ID x 27mm OD x 30mm L

4шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

590353

PLUG,15mm OD x 10mm High, Plastic

D=14

2шт.

7

14328701

PLUG,M20, Tapered

1шт.

8

10798204

COTTER PIN,M6.3 x 32

2шт.

9

87584549

PLUG

M22 x 1.5

1шт.

10

4658441

DOWEL,10mm OD x 20mm L

10x20

2шт.

11

4998275

PLUG,8,8mm ID x 10,8mm OD x 10.0mm L

D=10.8-11

2шт.

12

13530434

STUD

4шт.

13

16101524

NUT,M12 x 1.25, Cl 10

4шт.
