(90.151.AK) - STD + VAR - 330879, 392878 - REAR VIEW MIRROR - INSIDE

Запчасти Case IH FARMALL 105U (90.151.AK) - STD + VAR - 330879, 392878 - REAR VIEW MIRROR - INSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

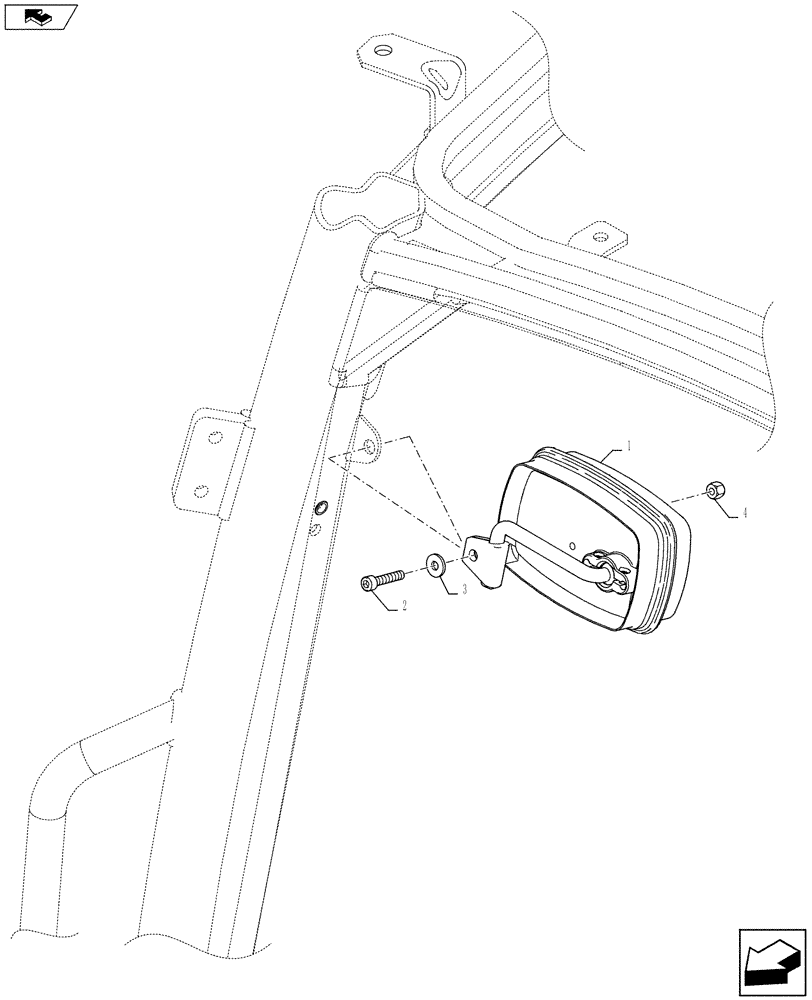

Схема запчастей Case IH FARMALL 105U - (90.151.AK) - STD + VAR - 330879, 392878 - REAR VIEW MIRROR - INSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87665407

REAR VIEW MIRROR

1шт.

2

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

1шт.

3

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

4

12574211

NUT,M6 x 1, Cl 8

1шт.

Выбрано товаров: 4
