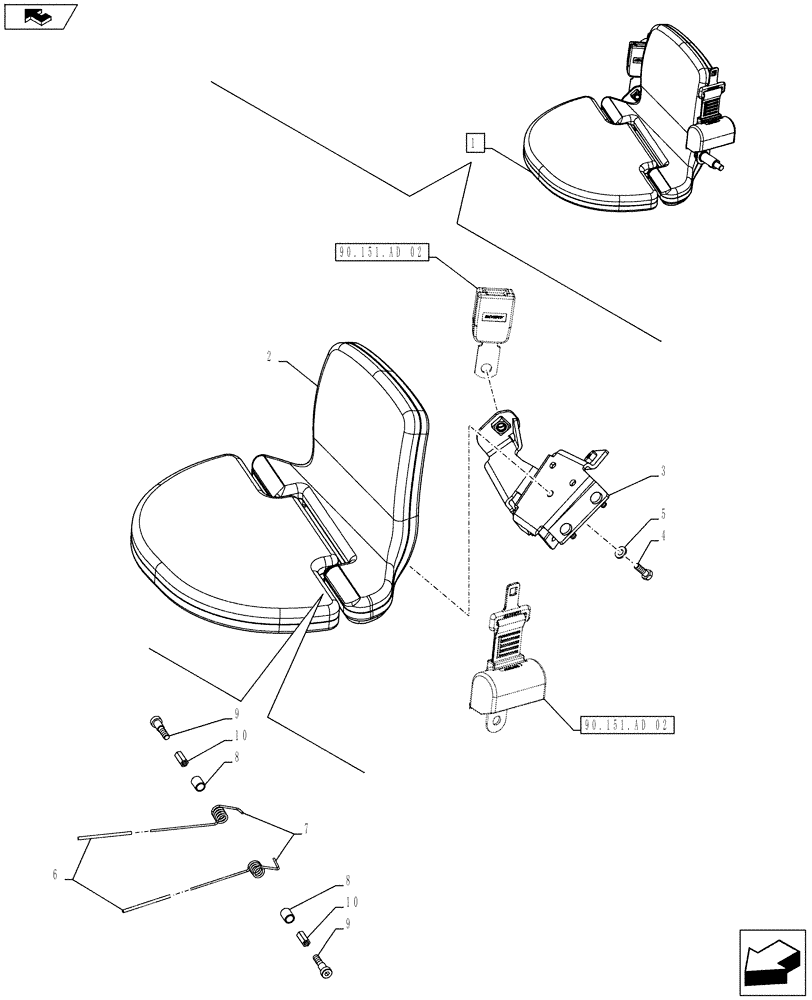

Запчасти Case IH FARMALL 105U (90.151.AC[02]) - VAR - 332865 - PASSENGER SEAT - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84281902

INSTRUCTIONAL SEAT

ASSY, Incl 2 - 10, Serial Range: -`0

1шт.

See Instructional Seat Components also in Figure 90.151.AD 02

1шт.

2

NSS

NOT SOLD SEPARAT

Instructional Seat, Incl in 1

1шт.

3

84295299

BRACKET

1шт.

4

84467674

WASHER,8.4mm ID x 17.5mm OD x 2.5mm Thk

3шт.

5

84467669

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

6

84412870

SLEEVE

2шт.

7

84412864

SPRING

2шт.

8

84412873

BUSHING

2шт.

9

84412875

SUPPORT

2шт.

10

84412869

PROFILE,M8 x 1.25

2шт.
