(90.150.BG[08]) - VAR - 336606 - CAB ROOF - SOFT TRIM - W/ OPENABLE HIGH VISIBILITY PANEL - NA

Запчасти Case IH FARMALL 105U (90.150.BG[08]) - VAR - 336606 - CAB ROOF - SOFT TRIM - W/ OPENABLE HIGH VISIBILITY PANEL - NA (90) - PLATFORM, CAB, BODYWORK AND DECALS

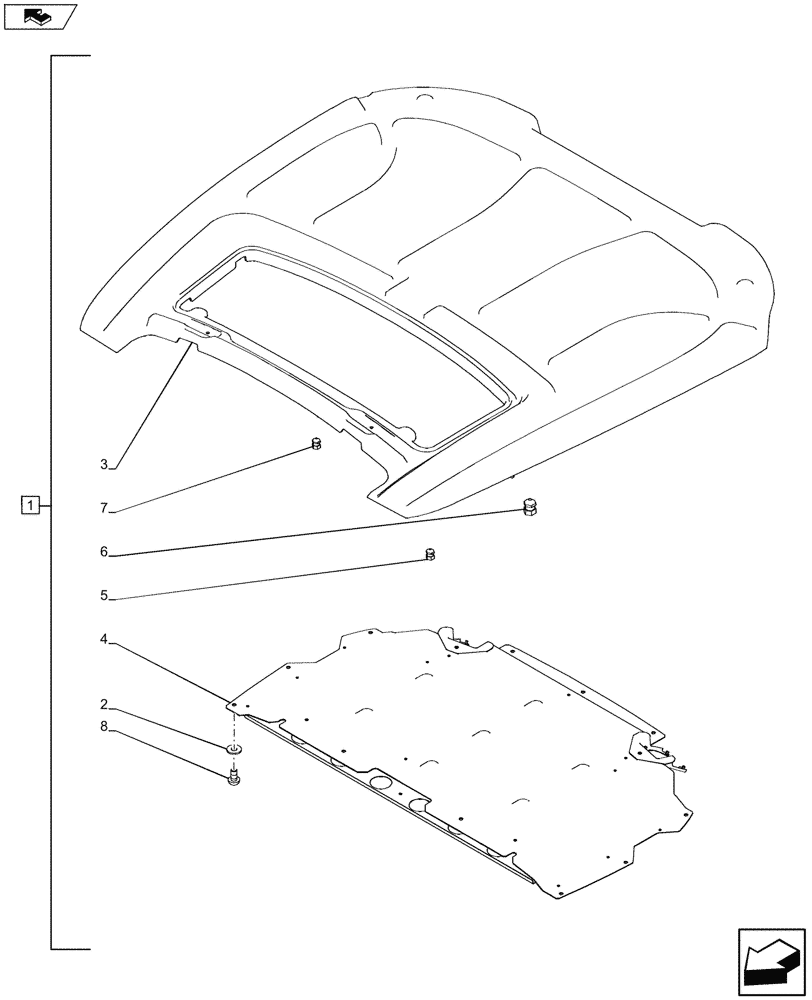

Схема запчастей Case IH FARMALL 105U - (90.150.BG[08]) - VAR - 336606 - CAB ROOF - SOFT TRIM - W/ OPENABLE HIGH VISIBILITY PANEL - NA (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
home
2
7
3
1
home
5
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47449214

ROOF

ASSY, Incl 2 - 8

1шт.

2

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

11шт.

3

NSS

NOT SOLD SEPARAT

Roof, Incl in 1

1шт.

4

47411515

STEEL PLATE

1шт.

5

84310806

INSERT

M8

18шт.

6

84310807

INSERT

M6

39шт.

7

84320197

THREADED INSERT

M4

1шт.

8

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

11шт.

Выбрано товаров: 8
