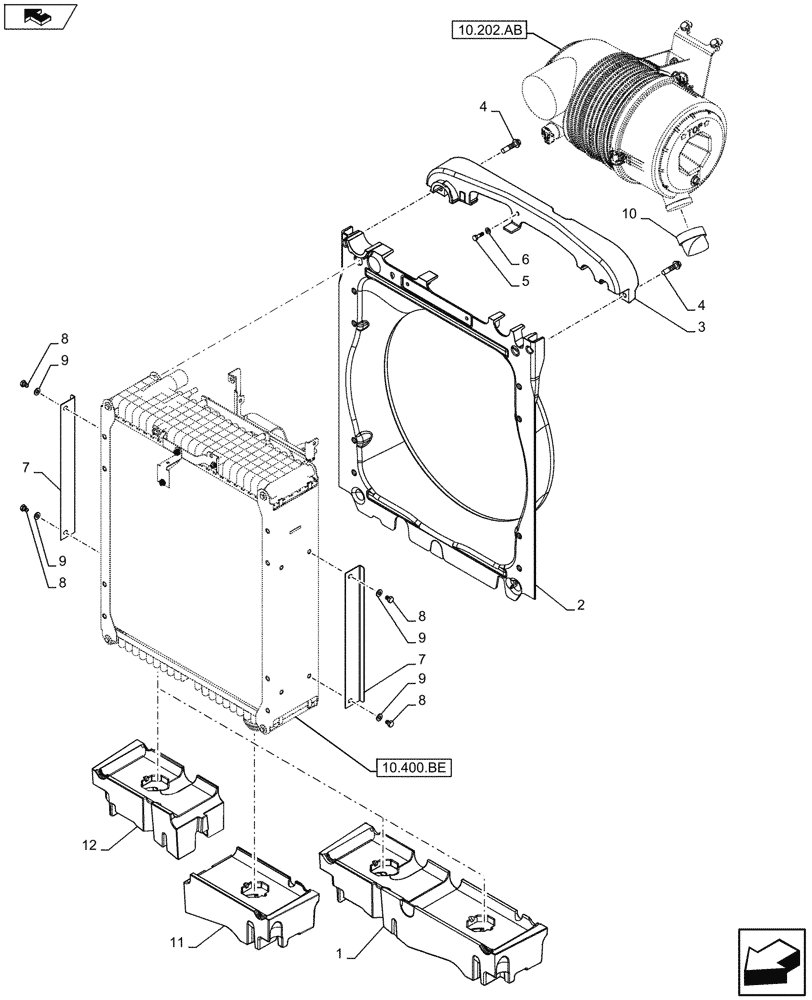

Запчасти Case IH FARMALL 105U (10.400.BF[01]) - STD + VAR - 390200 - RADIATOR FAN SHROUD (10) - ENGINE

1

84468203

INSULATOR

1шт.

2

84279593

SHROUD

1шт.

3

84425897

SEAL

1шт.

4

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

2шт.

5

10902420

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

6

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

7

84405336

COVER

2шт.

8

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

9

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

10

47402293

DUST VALVE

1шт.

11

47444204

SEAL

LH, Alternative Part

1шт.

12

47444202

RUBBER BLOCK

RH, Alternative Part

1шт.
