Запчасти Case IH FARMALL 105U (90.150.BC[01B]) - VAR - 336606 - CAB ROOF - HATCH - W/ OPENABLE HIGH VISIBILITY PANEL - BEGIN YR 30-APR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

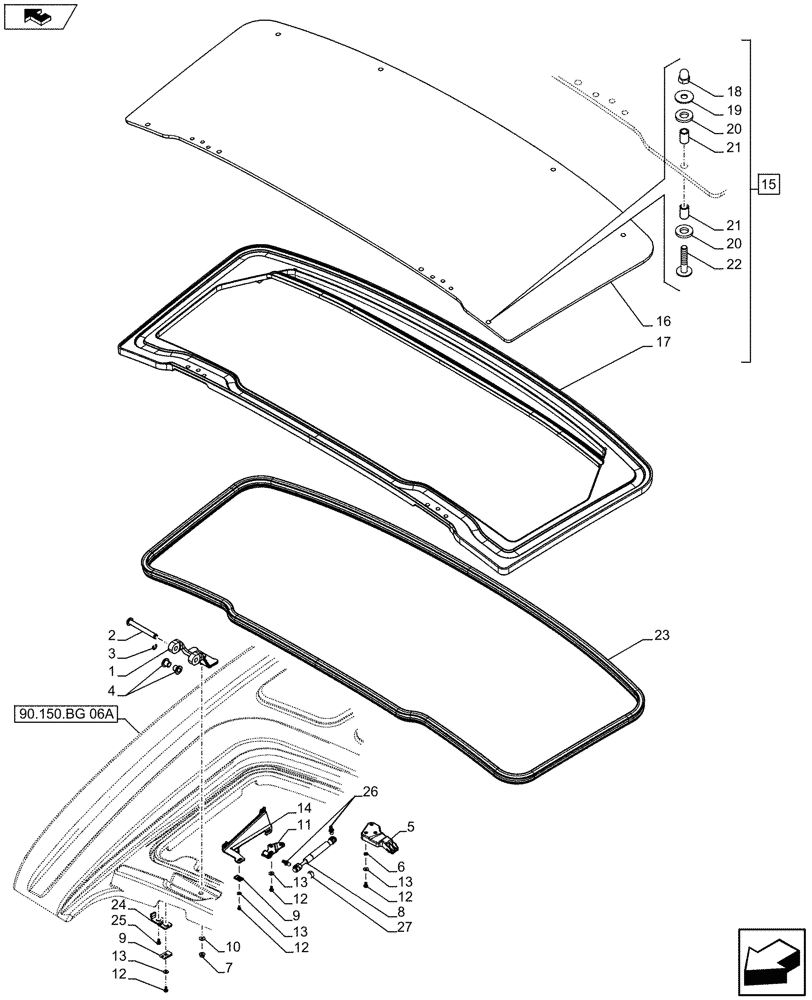

Схема запчастей Case IH FARMALL 105U - (90.150.BC[01B]) - VAR - 336606 - CAB ROOF - HATCH - W/ OPENABLE HIGH VISIBILITY PANEL - BEGIN YR 30-APR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
12
26
23
13
14
21
13
24
19
9
9
3
home
13
27
10
12
16
20
22
12
1
90.150.bg 06a
7
2
8
17
4
25
21
18
15
5
6
11
12
13

Артикул

Название

Примечание

Количество

1

84585046

HINGE

2шт.

2

84277677

PIN,8mm OD x 68mm L

2шт.

3

800-436

CIRCLIP,M6

2шт.

4

84276011

BUSHING,8mm ID x 10mm OD x 11mm L

4шт.

5

47437393

BRACKET

LH

1шт.

5

47437403

BRACKET

RH

1шт.

6

47451478

BUSHING,7.2mm ID x 9.2mm OD x 2.8mm L

6шт.

7

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

8

47622039

GAS STRUT

2шт.

9

14371774

SPRING NUT,M6, U, 12mm long

8шт.

10

12640604

WASHER,6.15mm ID x 25mm OD x 2mm Thk

2шт.

11

47455917

BRACKET

Gas Spring, LH

1шт.

11

47455918

BRACKET

Gas Spring, RH

1шт.

12

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

24шт.

13

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

24шт.

14

47441754

BRACKET

LH

1шт.

14

47441755

BRACKET

RH

1шт.

15

47437437

WINDOW

ASSY, Incl 16 - 22

1шт.

16

47437416

GLASS

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.

18

47555944

NUT,Dome Hex, M5

8шт.

19

47555880

WASHER,5.3mm ID x 15mm OD x 1mm Thk

8шт.

20

47555678

RUBBER SEAL,7mm ID x 14mm OD x 2mm Thk

16шт.

21

47555740

SPACER,5mm ID x 7mm OD x 10mm L

16шт.

22

47555755

SCREW,Pan, M5 x 25mm L

8шт.

23

84272323

RUBBER SEAL,2605mm L

1шт.

24

47446217

BRACKET

2шт.

25

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

2шт.

26

87603835

BALL STUD,10mm D, M8 x 13mm

4шт.

27

47622040

SLIDING PAD

4шт.

Выбрано товаров: 30
