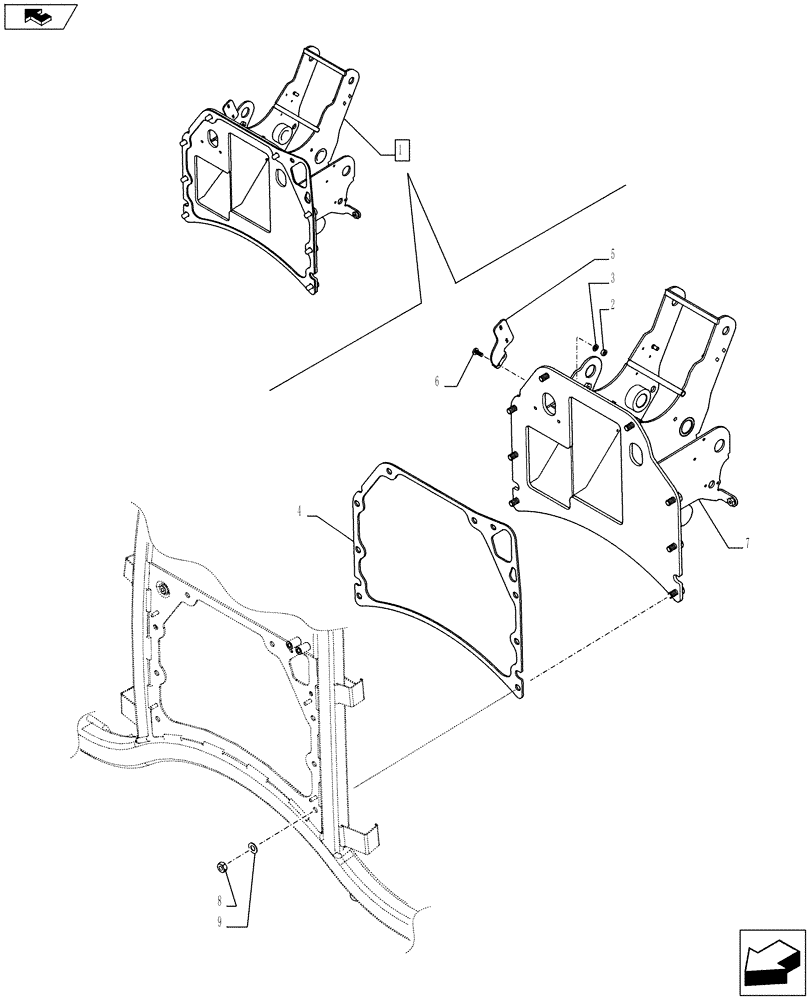

Запчасти Case IH FARMALL 105U (90.150.AC[02]) - STD + VAR - 336606, 391606 - SPARK ARRESTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84326548

SUPPORT

ASSY, Incl 2 - 7, Years: -27-NOV-13

1шт.

1

47401952

SUPPORT

ASSY, Incl 2 - 7, Years: 28-NOV-13-01-MAY-14

1шт.

1

47580773

SUPPORT

ASSY, Incl 2 - 7, Start Year: 02-MAY-14

1шт.

2

15896214

NUT,M6, Cl 8

2шт.

3

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

4

84535896

GASKET,3mm Thk

1шт.

5

84537935

BRACKET

1шт.

6

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

7

NSS

NOT SOLD SEPARAT

Spark Arrester, Incl in 1

1шт.

8

12164721

NUT,M10 x 1.25, Cl 10

8шт.

9

12601470

LOCK WASHER,B10 Wave Spring, 0.50mm ID x 21mm OD x 1mm, HDN

8шт.
