(90.124.AE[07]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION, PREMIUM

Запчасти Case IH FARMALL 105U (90.124.AE[07]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION, PREMIUM (90) - PLATFORM, CAB, BODYWORK AND DECALS

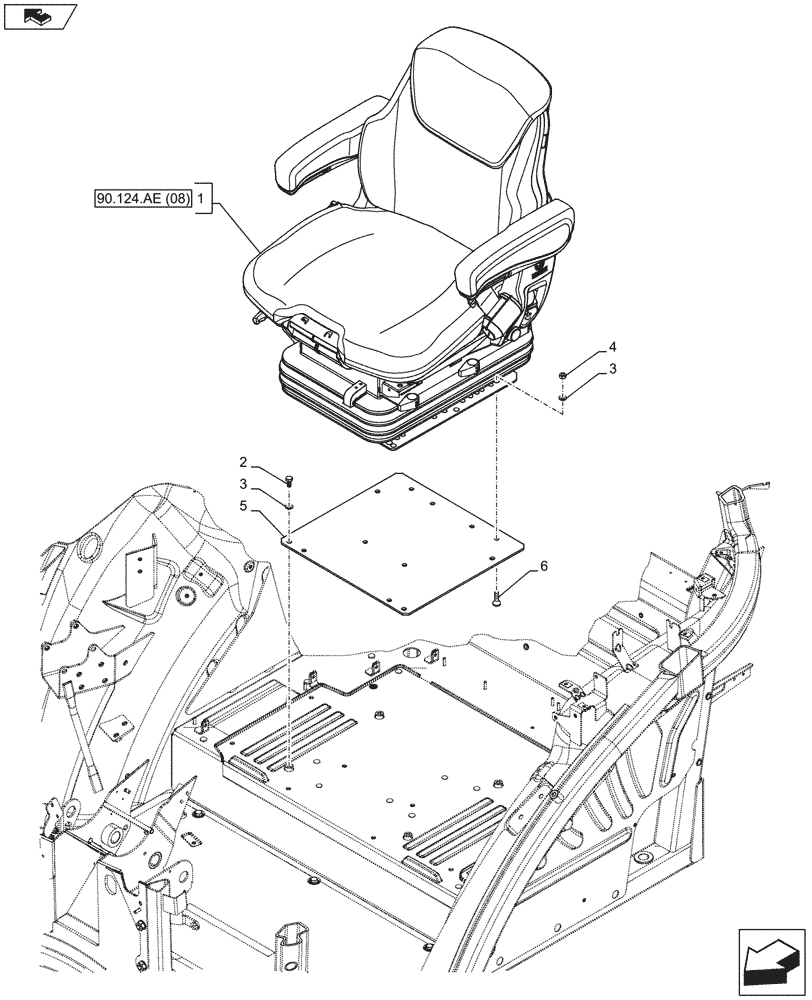

Схема запчастей Case IH FARMALL 105U - (90.124.AE[07]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION, PREMIUM (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ae (08)
5
4
3
6
3
1
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84468823

DRIVER SEAT

ASSY, Years: -27-MAR-13

1шт.

1

47476148

DRIVER SEAT

ASSY, Start Year: 28-MAR-13

1шт.

2

16043334

BOLT,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd

4шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

16100814

NUT,M8, Cl 8, DAC

4шт.

5

84469342

PLATE

1шт.

6

10356321

SCREW,Sl Csk, M8 x 20mm, Cl 8.8

4шт.

Выбрано товаров: 7
