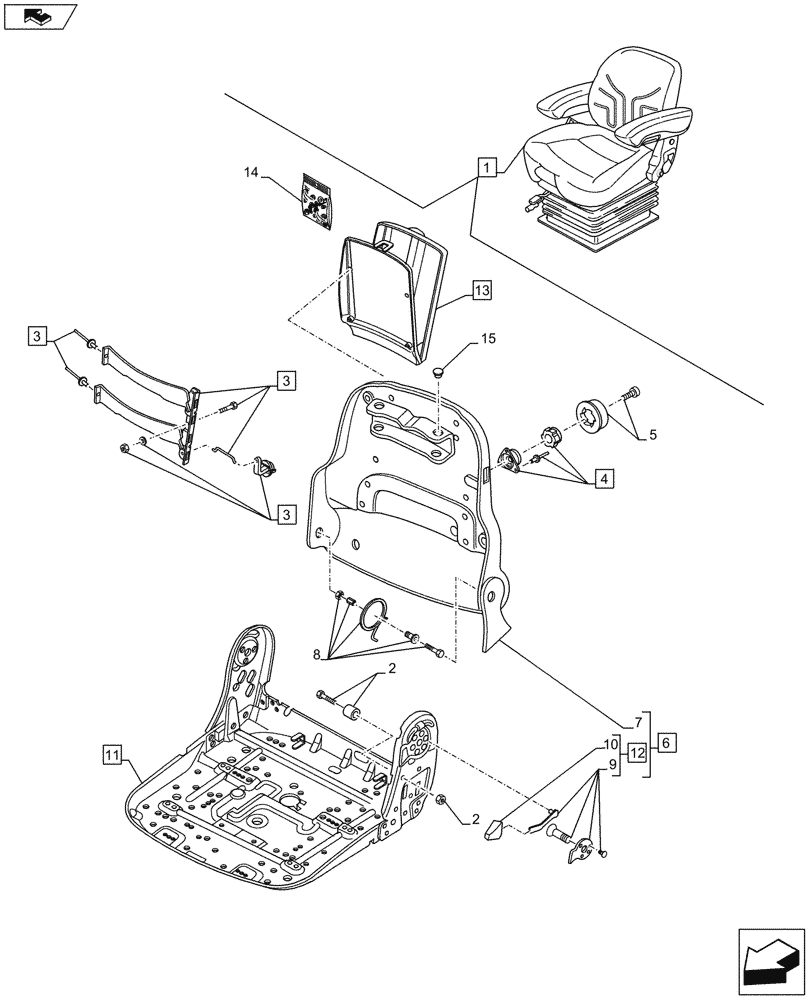

Запчасти Case IH FARMALL 105U (90.124.AE[03A]) - VAR - 332850 - DRIVER SEAT, SEAT, AIR SUSPENSION, DELUXE - BEGIN YR 24-APR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47476146

DRIVER SEAT

ASSY, Incl 2 - 15

1шт.

2

84280032

SCREW

1шт.

3

345767A1

SUPPORT

ASSY, Incl 4

1шт.

4

84191199

ACTUATOR

ASSY, Incl 5

1шт.

5

82034964

HANDLE

1шт.

6

84255306

KIT

ASSY, Incl 7, 12

1шт.

7

NSS

NOT SOLD SEPARAT

Backrest, Incl in 6

1шт.

8

84191131

SET OF PARTS

1шт.

9

NSS

NOT SOLD SEPARAT

Actuation, Incl in 12

1шт.

10

345752A1

HANDLE

1шт.

11

NSS

NOT SOLD SEPARAT

Seat Pan, Incl in 1

1шт.

12

84255307

ADAPTER

ASSY, Incl 9 - 10

1шт.

13

71491415

UTILITY HOLDER

ASSY, Incl 14

1шт.

14

84247569

REPAIR KIT

Small Parts Literature Box

1шт.

15

84255310

COVER

1шт.
