(90.124.AE[01]) - VAR - 332850 - DRIVER SEAT, SEAT, AIR SUSPENSION, DELUXE

Запчасти Case IH FARMALL 105U (90.124.AE[01]) - VAR - 332850 - DRIVER SEAT, SEAT, AIR SUSPENSION, DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS

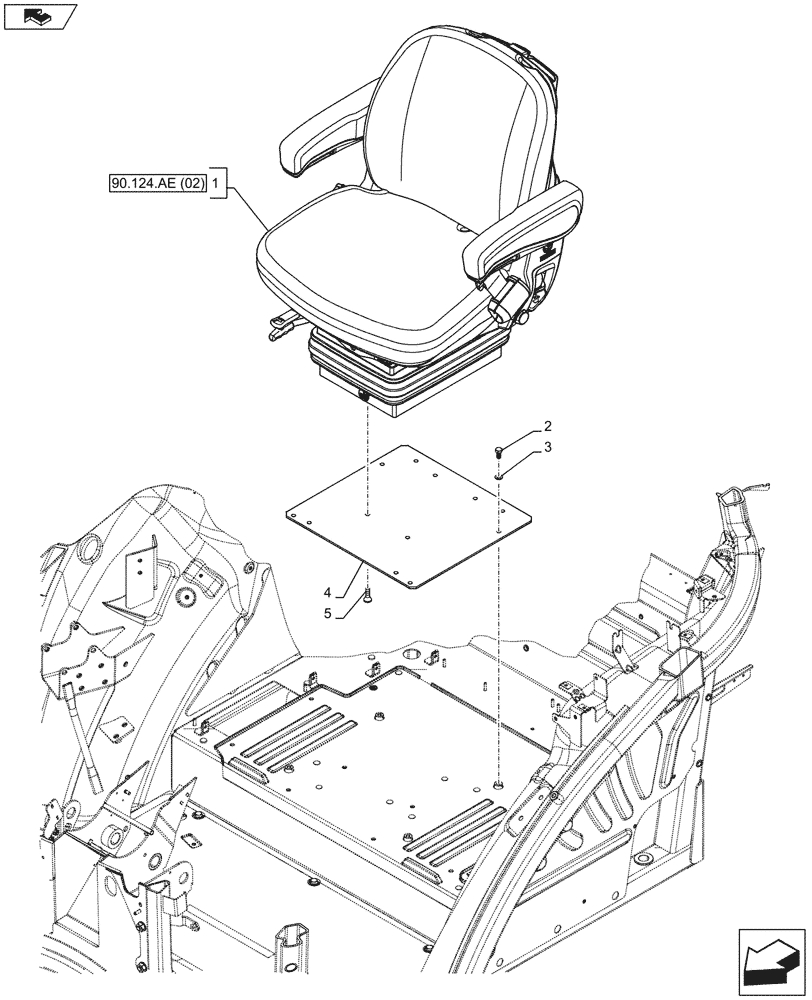

Схема запчастей Case IH FARMALL 105U - (90.124.AE[01]) - VAR - 332850 - DRIVER SEAT, SEAT, AIR SUSPENSION, DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ae (02)
5
4
1
3
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84468817

DRIVER SEAT

ASSY, Years: -24-MAR-13

1шт.

1

47476146

DRIVER SEAT

ASSY, Start Year: 25-MAR-13

1шт.

2

16043334

BOLT,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd

4шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

84469342

PLATE

1шт.

5

10356321

SCREW,Sl Csk, M8 x 20mm, Cl 8.8

4шт.

Выбрано товаров: 6
