(90.118.CE[01]) - STD + VAR - 391460 - OPERATORS LADDER, LEFT SIDE

Запчасти Case IH FARMALL 105U (90.118.CE[01]) - STD + VAR - 391460 - OPERATORS LADDER, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

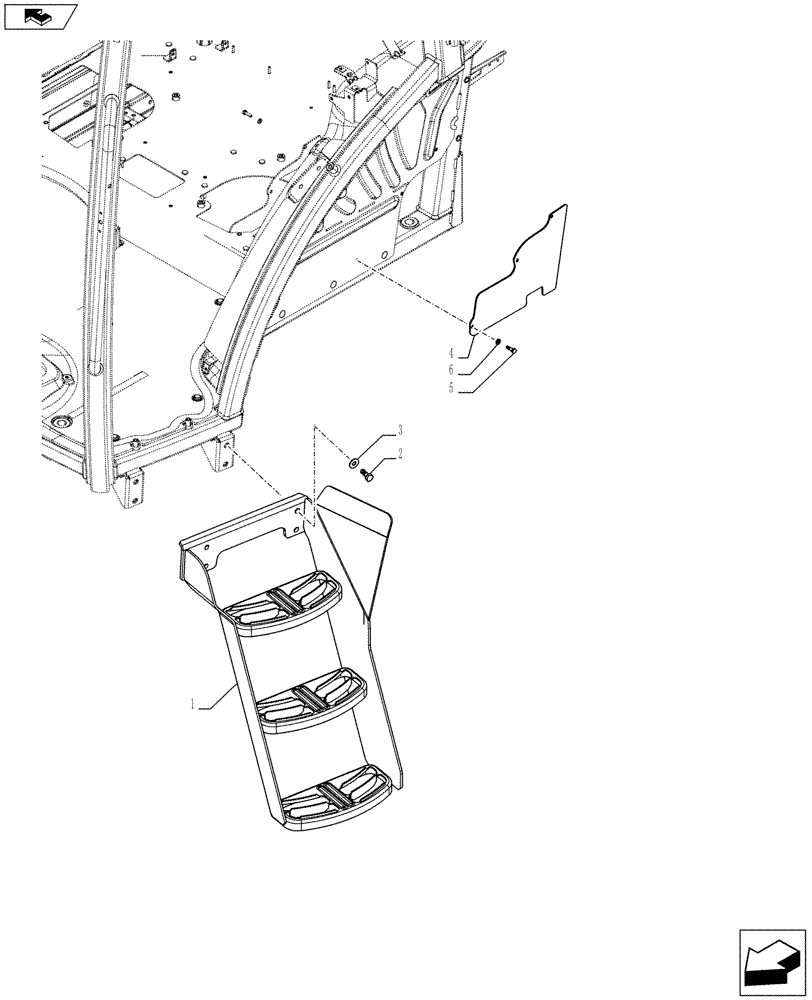

Схема запчастей Case IH FARMALL 105U - (90.118.CE[01]) - STD + VAR - 391460 - OPERATORS LADDER, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
3
6
1
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84604569

LADDER

1шт.

2

11106334

SCREW,Hex, M10 x 28mm, Cl 10.9

4шт.

3

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.

4

84477830

STEEL PLATE

1шт.

5

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

6

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

3шт.

Выбрано товаров: 6
