(90.118.BM[02]) - VAR - 330829 - MIRROR - W/ AUTOMATIC PICK-UP HITCH - ISO

Запчасти Case IH FARMALL 105U (90.118.BM[02]) - VAR - 330829 - MIRROR - W/ AUTOMATIC PICK-UP HITCH - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS

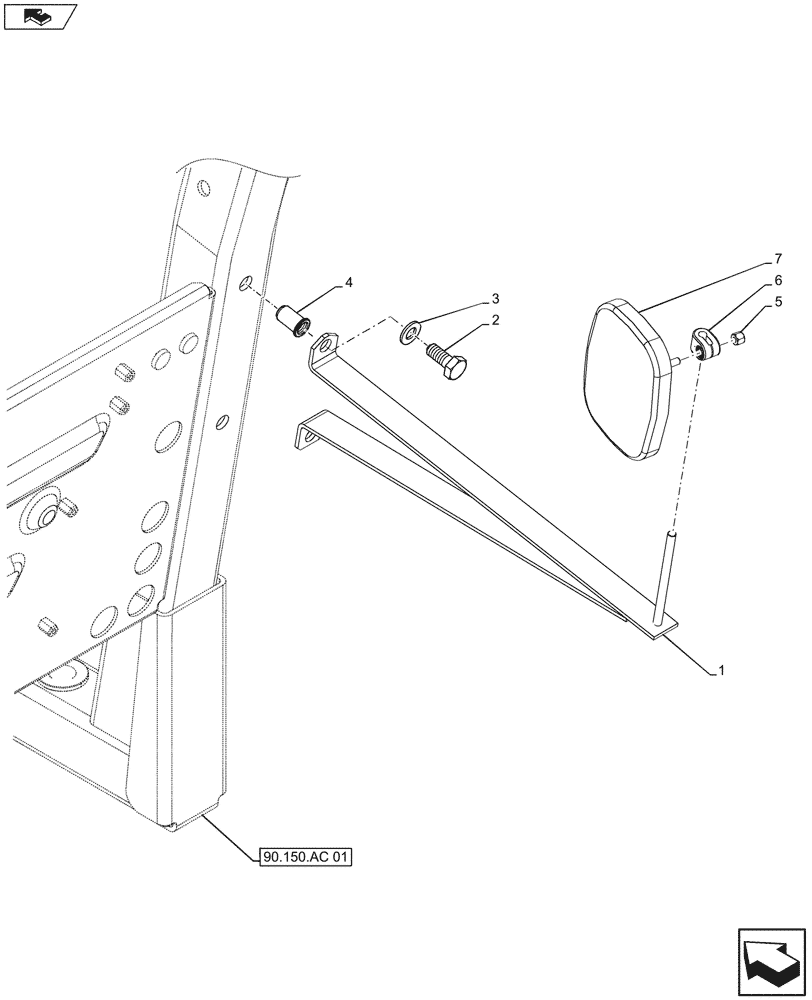

Схема запчастей Case IH FARMALL 105U - (90.118.BM[02]) - VAR - 330829 - MIRROR - W/ AUTOMATIC PICK-UP HITCH - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
home
1
3
4
2
6
90.150.ac 01
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47443783

ARM

1шт.

2

15970734

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

3

11190674

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD

2шт.

4

84519774

RIVET,13mm OD x 23.5mm L

2шт.

5

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

1шт.

6

5144871

CLIP

1шт.

7

47124399

REAR VIEW MIRROR,143mm x 192mm

1шт.

Выбрано товаров: 7
