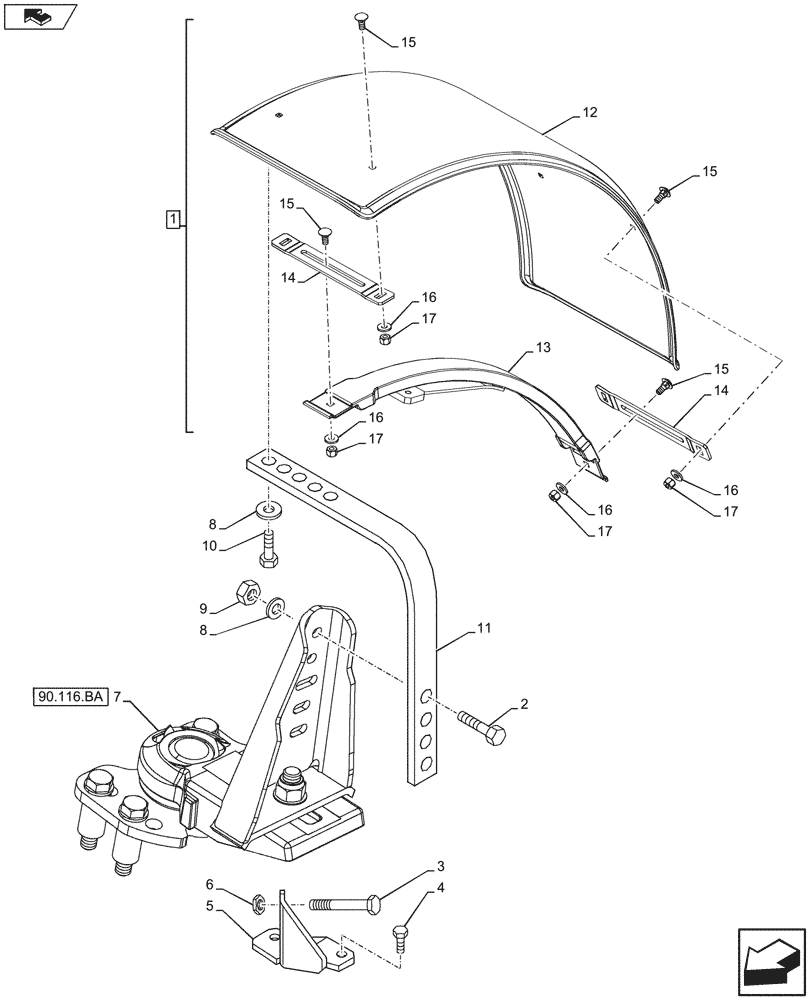

Запчасти Case IH FARMALL 105U (90.116.AC[05]) - VAR - 333486 - DYNAMIC FRONT FENDER (480MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87600020

FRONT FENDER

W=480mm, ASSY, Incl 12 - 17

2шт.

2

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

3

15541421

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

2шт.

4

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

5

87609919

BRACKET

LH

1шт.

5

87609920

BRACKET

RH

1шт.

6

16101521

NUT,M12 x 1.25, Cl 10

2шт.

7

87599488

SUPPORT

RH

1шт.

7

87599910

SUPPORT

LH

1шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

9

16105014

LOCK NUT,M12 x 1.25

4шт.

10

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

11

82027913

SUPPORT

2шт.

12

87612679

FRONT FENDER

2шт.

13

47132609

SUPPORT

2шт.

14

82021040

SUPPORT

4шт.

15

82021059

BOLT,Hex, M10 x 1.25 x 31mm

12шт.

16

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

12шт.

17

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

12шт.
