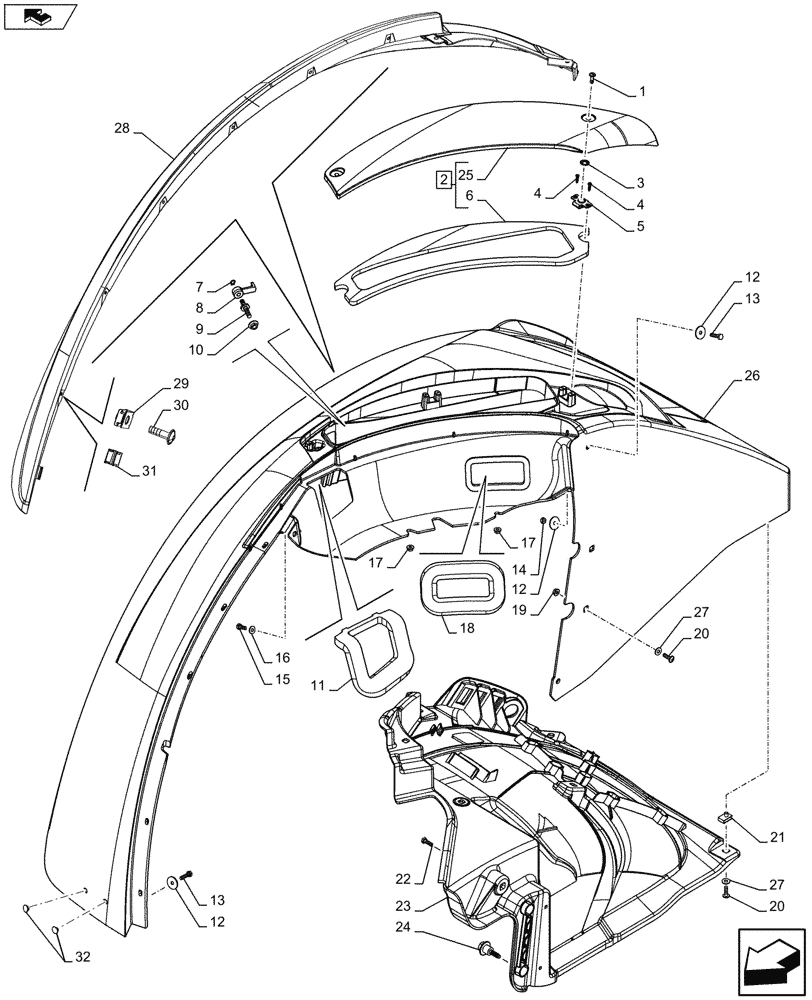

Запчасти Case IH FARMALL 105U (90.116.AC[03]) - VAR - 743910 - REAR FENDER, COVER, W/ EXTENTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84290347

LOCK PIN,6mm OD x 18mm L

4шт.

2

84513724

COVER

ASSY, RH, Incl 6, 25

1шт.

2

84513723

COVER

ASSY, LH, Incl 6, 25

1шт.

3

84290344

THRUST WASHER,13mm OD x 1mm Thk

4шт.

4

15956607

SCREW,Pan Hd, M3 x 3 x 12mm

8шт.

5

84351743

CLIP,9mm ID

4шт.

6

84346360

SEAL,468.5mm L

RH

1шт.

6

84221543

SEAL,468.5mm L

LH

1шт.

7

11065476

SNAP RING,M6, Ext

4шт.

8

84341983

LOCK KEY

4шт.

9

84541332

PIN,6mm OD x 37mm L

4шт.

10

13046111

LOCK NUT,Flg Lock, M6

4шт.

11

84234567

SEAL,156mm L

2шт.

12

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

24шт.

13

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

16шт.

14

15896211

NUT,M6, Cl 8

2шт.

15

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

16

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

17

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

4шт.

18

84234566

SEAL

2шт.

19

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

20

87698793

SCREW,Hex, M6 x 20mm L

18шт.

21

14189071

SPRING NUT,M6

14шт.

22

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

23

84537894

FENDER

RH

1шт.

23

84537882

FENDER

LH

1шт.

24

84538906

SCREW

4шт.

25

NSS

NOT SOLD SEPARAT

Top Cover, Incl in 2

1шт.

26

84538358

FENDER

RH

1шт.

26

84538356

FENDER

LH

1шт.

27

12643721

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

18шт.

28

47375754

EXTENSION

LH

1шт.

28

47375757

EXTENSION

RH

1шт.

29

14189071

SPRING NUT,M6

12шт.

30

87698793

SCREW,Hex, M6 x 20mm L

12шт.

31

82010838

SPRING CLIP,0.5mm Thk

2шт.

32

5112608

PLUG,9mm, Black

4шт.
