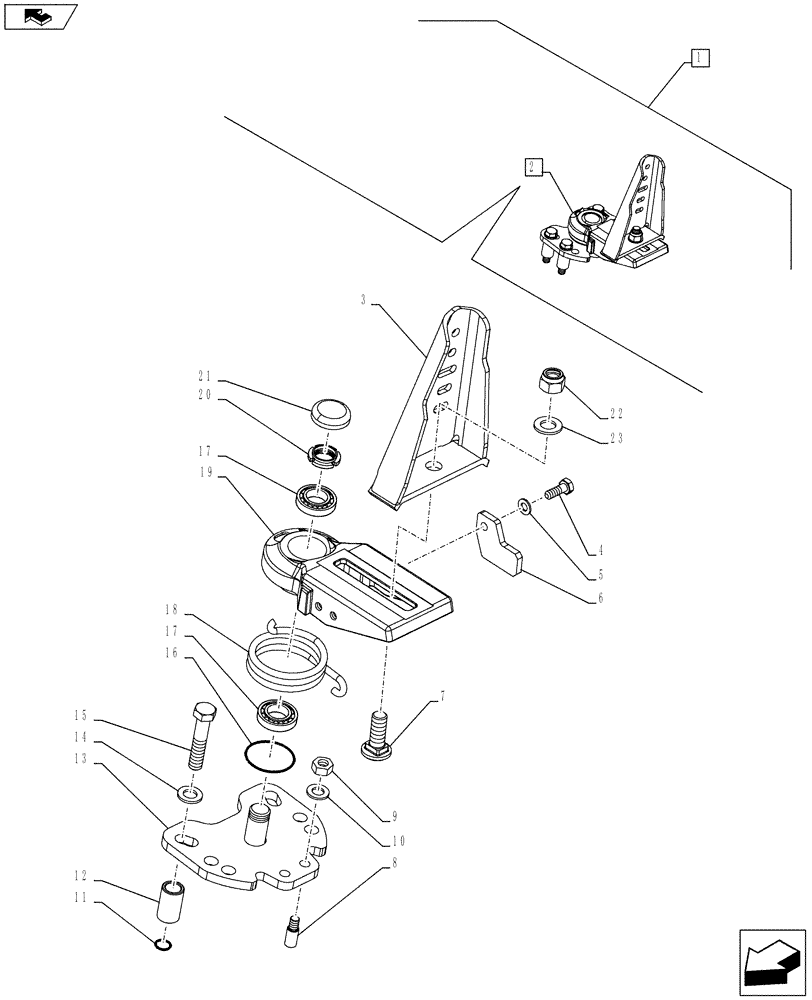

Запчасти Case IH FARMALL 105U (88.090.AA[08]) - DIA KIT, DYNAMIC FRONT FENDERS (480MM) (88) - ACCESSORIES

1

718826050

DIA KIT, TRACTOR

Dynamic front fenders (480mm), Incl 2, Serial Range: -`0

1шт.

See also fig. 88.090.AA 07

1шт.

2

87599488

SUPPORT

RH, ASSY, Incl 3 - 23

1шт.

2

87599910

SUPPORT

LH, ASSY, Incl 3 - 23

1шт.

3

87528133

SUPPORT

RH

1шт.

3

87528148

SUPPORT

LH

1шт.

4

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

LH

1шт.

5

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

RH

1шт.

6

87609801

BRACKET

1шт.

7

47132633

SCREW,M18 x 1.5, Cl 8.8

RH

1шт.

8

47132631

DOWEL,M14 x 1.5mm

LH

1шт.

9

10791311

THIN NUT,M14 x 1.5, Cl 04

1шт.

10

11191079

BELLEVILLE WASHER,Belleville, 15mm ID x 27mm OD x 2.6mm Thk

1шт.

11

87611913

GASKET

4шт.

12

87610555

SPACER,60mm

4шт.

13

87543520

BASE

1шт.

14

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

15

15981521

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

4шт.

16

47132630

O-RING,2.62mm Thk x 50mm ID

1шт.

17

47132628

ROLLER BEARING,25mm ID x 47mm OD x 15mm W

2шт.

18

87697271

SPRING

RH

1шт.

18

87697730

SPRING

LH

1шт.

19

87543516

HUB

1шт.

20

47132629

LOCK NUT,M25 x 1.5 ZG

1шт.

21

87543517

COVER,47mm OD

1шт.

22

47132634

NUT,M18, 1.5mm Pitch

1шт.

23

14489601

WASHER,19mm ID x 34mm OD x 3mm Thk

1шт.
